MP8860 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

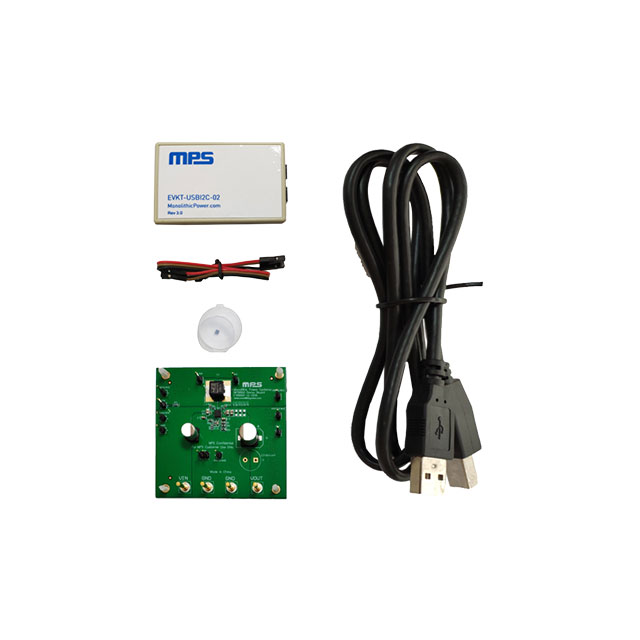

EVALUATION BOARD, MP8860GQ-0000, POWER MANAGEMENT - SYNCHRONOUS BUCK-BOOST CONVERTER
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Regulator Topology | Utilized IC / Part | Contents | Voltage - Output | Frequency - Switching | Main Purpose | Current - Output | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Input (Min) [Min] | Synchronous Rectifier | Output Configuration | Voltage - Output (Min/Fixed) | Function | Voltage - Output (Max) [Max] | Topology | Voltage - Input (Max) [Max] | Number of Outputs | Package / Case | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Accessories Board(s) Cable(s) | Fully Populated | Buck-Boost | MP8860 | Accessories Board(s) Cable(s) | 5 V | 500 kHz | DC/DC Step Up or Down | 1 A | |||||||||||||||
 Monolithic Power Systems Inc. | 530 kHz | 1 A | 16-QFN (3x3) | -40 C | 125 °C | Surface Mount | 2.8 V | Positive | 1 V | Step-Up/Step-Down | 20.47 V | Buck-Boost | 22 V | 1 | 16-PowerVFQFN | Adjustable | ||||||||||
 Monolithic Power Systems Inc. | 530 kHz | 1 A | 16-QFN (3x3) | -40 C | 125 °C | Surface Mount | 2.8 V | Positive | 1 V | Step-Up/Step-Down | 20.47 V | Buck-Boost | 22 V | 1 | 16-PowerVFQFN | Adjustable |
