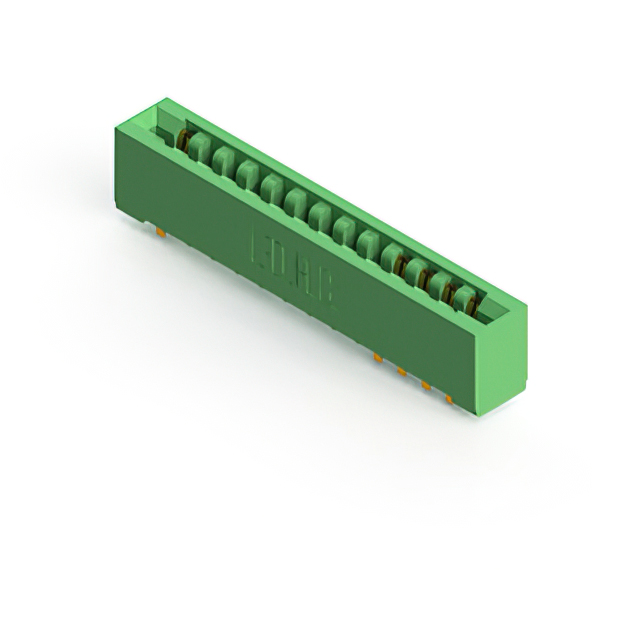

807-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 26POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Termination | Features | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Color | Number of Rows [custom] | Read Out | Gender | Pitch | Pitch | Mounting Type | Number of Positions | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Card Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Termination Rows | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder | Card Extender | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Board Edge Straddle Mount | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Green | Single | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 26 | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 0.25 Ám | 10 Áin | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Right Angle Through Hole | 52 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 26 | Non Specified - Dual Edge | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | Single | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 26 | Non Specified - Single Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 1 | 0.25 Ám | 10 Áin | ||||||
EDAC Inc. | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 52 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 26 | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Solder | Card Extender | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Board Edge Straddle Mount | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Wire Wrap | 0.128 " | Side Mount Opening Unthreaded | 3.25 mm | Green | 2 | Dual | Female | 3.96 mm | 0.156 in | Through Hole | 26 | Copper Alloy | Semi Bellows | 125 °C | -40 C | 13 | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin |
