MAX40000 Series

Catalog

EVKIT FOR 600NA COMPARATOR IN UL

Part	Supplied Contents	Type	Function	Utilized IC / Part	Secondary Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	CMRR, PSRR (Typ) [Min]	CMRR, PSRR (Typ)	Propagation Delay (Max)	Output Type	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - Input Offset (Max) [Max]	Current - Output (Typ)	Mounting Type	Current - Quiescent (Max) [Max]	Number of Elements	Current - Input Bias (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Hysteresis

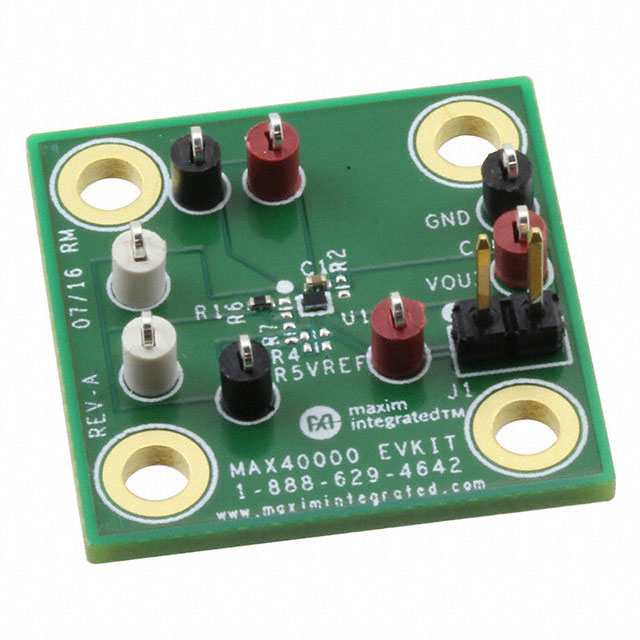

Analog Devices Inc./Maxim Integrated MAX40000EVKIT#	Board(s)	Linear	Comparator Single	MAX40000	Push-Pull Output
Analog Devices Inc./Maxim Integrated MAX40000ANT12+T		with Voltage Reference				125 °C	-40 °C	6-XFBGA WLPBGA	60 dB	46 dB	14 µs	Push-Pull	1.08	6-WLP	0.73	10 mV	2 mA	Surface Mount	1.7 µA	1	0.005 µA	1.7 V	5.5 V	2.5 mV
Analog Devices Inc./Maxim Integrated MAX40000ANT12+		with Voltage Reference				125 °C	-40 °C	6-XFBGA WLPBGA	60 dB	46 dB	14 µs	Push-Pull	1.08	6-WLP	0.73	10 mV	2 mA	Surface Mount	1.7 µA	1	0.005 µA	1.7 V	5.5 V	2.5 mV
Analog Devices Inc./Maxim Integrated MAX40000AUT12+T		with Voltage Reference				125 °C	-40 °C	SOT-23-6	60 dB	46 dB	14 µs	Push-Pull		SOT-6		10 mV	2 mA	Surface Mount	1.7 µA	1	0.005 µA	1.7 V	5.5 V	2.5 mV
