ELYI-K62 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

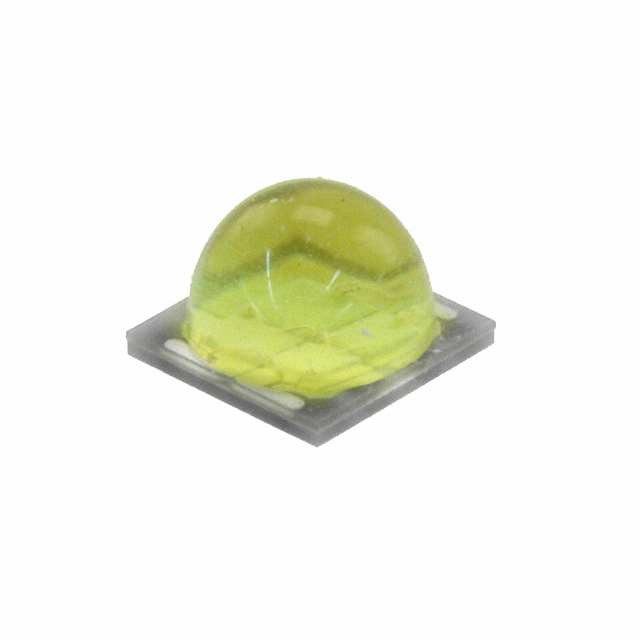

LED YI COOL WHT 6500K 70CRI 8SMD
| Part | Color | Current - Max [Max] | CCT (K) [Min] | CCT (K) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | CRI (Color Rendering Index) | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lumens/Watt @ Current - Test | Thermal Resistance of Package | Package / Case | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] | Flux @ 85°C, Current - Test | Voltage - Forward (Vf) (Typ) | Viewing Angle | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Cool White | 1 A | 6020 K | 7050 K | 0.236 " | 6 mm | 0.236 in | 6 mm | 70 | Surface Mount | 4.43 mm | 0.174 in | 71 lm/W | 6 °C/W | 2424 (6060 Metric) | 375 lm | 350 lm | 333 lm | 7 V | 105 ° | |
 Everlight Electronics Co Ltd | Cool White | 1 A | 5310 K | 6020 K | 0.236 " | 6 mm | 0.236 in | 6 mm | 70 | Surface Mount | 4.43 mm | 0.174 in | 71 lm/W | 6 °C/W | 2424 (6060 Metric) | 375 lm | 350 lm | 333 lm | 7 V | 105 ° | 5700 K |
