G80YCR-P Series
Manufacturer: ODU
Beta
⌘K

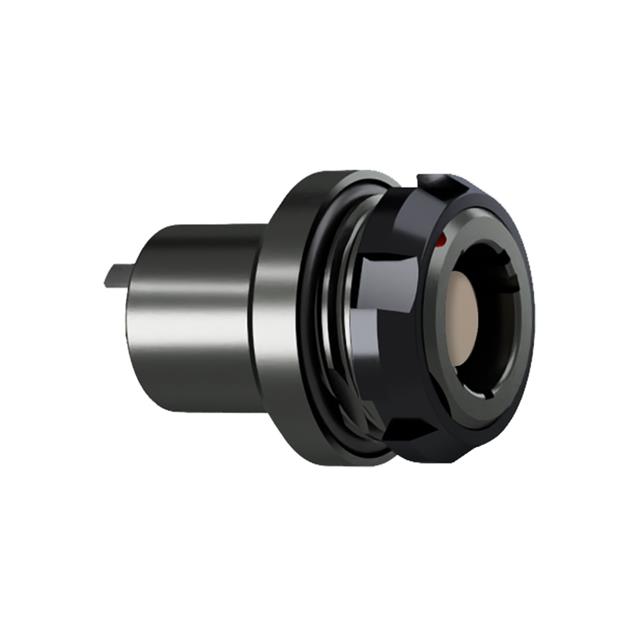

ODU AMC RECEPT, STY 8, SZ 0, 4P,
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Fastening Type | Contact Finish - Mating | Applications | Mounting Feature | Contact Material | Ingress Protection | Color | Mounting Type | Insert Material | Current Rating (Amps) | Shielding | Primary Material | Orientation | Shell Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [custom] | Voltage Rating | Number of Positions | Shell Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount | Polyetheretherketone (PEEK) | 7 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 300 VDC | 4 | Ruthenium over Electroless Nickel | ||
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 200 V | 10 | Ruthenium over Electroless Nickel | Solder | |
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 200 V | 10 | Ruthenium over Electroless Nickel | ||
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 200 V | 9 | Ruthenium over Electroless Nickel | ||
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 300 VDC | 7 | Ruthenium over Electroless Nickel | ||
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 300 VDC | 7 | Ruthenium over Electroless Nickel | Solder | |
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 300 VDC | 4 | Ruthenium over Electroless Nickel | Solder | |
50 µin | 1.27 µm | UL94 V-0 | Detent Lock Push-Pull | Gold | Industrial Medical Military | Bulkhead - Front Side Nut | Copper Alloy | IP68 IP69K | Silver | Panel Mount Through Hole | Polyetheretherketone (PEEK) | 5 A | Shielded | Metal | C | Aluminum | Receptacle Female Sockets | -51 °C | 125 °C | 0 | 200 V | 9 | Ruthenium over Electroless Nickel | Solder |
