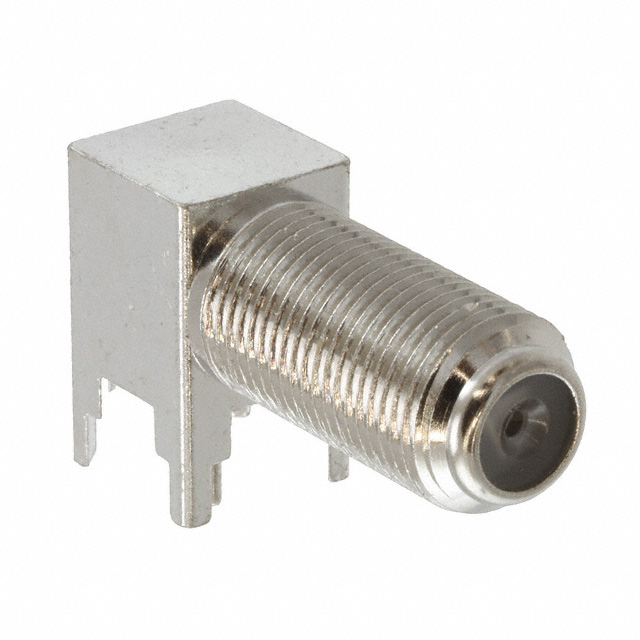

073330 Series
Manufacturer: Molex
Beta
⌘K
CONN F RCPT R/A 75 OHM PCB
| Part | Connector Style | Center Contact Plating | Frequency - Max [Max] | Body Material | Body Finish | Impedance | Contact Termination | Shield Termination | Center Contact Material | Mounting Type | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Voltage Rating | Dielectric Material | Dielectric Material | Housing Color | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | F Type | Tin | 2 GHz | Brass | Nickel | 75 Ohms | Solder | Solder | Phosphor Bronze | Through Hole Right Angle | 1 | 85 °C | -40 °C | Female Socket Receptacle | 500 V | Polyoxymethylene (POM) Acetal | Polypropylene (PP) | Silver | 500 |
Molex | F Type | Gold | 2 GHz | Brass | Tin | Solder | Solder | Brass | Through Hole | 1 | 85 °C | -40 °C | Male Pin Plug | 500 V | Polytetrafluoroethylene (PTFE) | Silver | 500 | ||
Molex | F Type | Gold | 2 GHz | Zinc Alloy | Tin | 75 Ohms | Solder | Solder | Beryllium Copper | Through Hole Right Angle | 1 | 85 °C | -40 °C | Female Socket Jack | 500 V | Polytetrafluoroethylene (PTFE) | Silver | 500 |
