ACDC03 Series
Manufacturer: Kingbright
Beta
⌘K

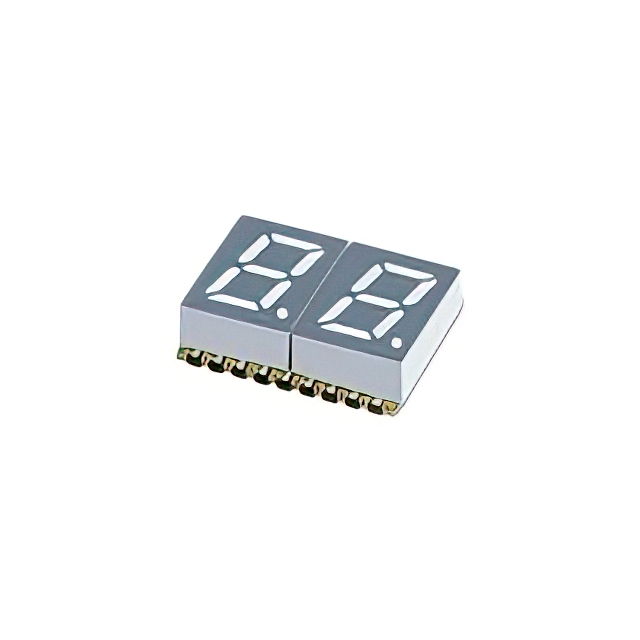

DISPLAY 7SEG 0.3" DBL GRN 20SMD
| Part | Wavelength - Peak | Millicandela Rating | Package / Case | Voltage - Forward (Vf) (Typ) | Color | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Common Pin | Display Type | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 565 nm | 3.5 mcd | 20-SMD No Lead | 2.2 V | Green | 2 | 7.62 mm | 0.3 in | 20 mA | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Common Cathode | 7-Segment | 62.5 mW |
 Kingbright | 12 mcd | 20-SMD No Lead | 2.1 V | Green | 2 | 7.62 mm | 0.3 in | 20 mA | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Common Cathode | 7-Segment | 75 mw | |
 Kingbright | 660 nm | 9.8 mcd | 20-SMD No Lead | 1.85 V | Red | 2 | 7.62 mm | 0.3 in | 20 mA | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Common Cathode | 7-Segment | 75 mw |
 Kingbright | 650 nm | 27 mcd | 20-SMD No Lead | 1.95 V | Red | 2 | 7.62 mm | 0.3 in | 20 mA | 0.148 in | 10 mm | 0.583 " | 14.8 mm | 0.394 in | 3.75 mm | Common Cathode | 7-Segment | 75 mw |
