A10L0C-P Series

Manufacturer: ODU

Catalog

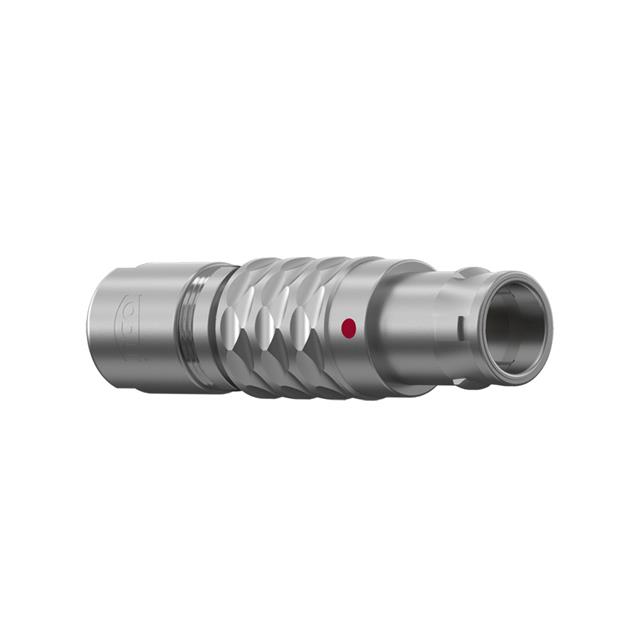

ODU MINI-SNAP PLUG, STY 1, SZ 0,

Part	Fastening Type	Insert Material	Connector Type	Voltage Rating	Shell Material	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Primary Material	Contact Material	Backshell Material, Plating	Contact Finish - Mating	Applications	Features	Shielding	Shell Finish	Ingress Protection	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]
ODU A10L0C-P02MJG0-4200	Push-Pull	Polyetheretherketone (PEEK)	Plug Male Pins	500 V	Brass	Free Hanging (In-Line)	7.5 A	120 °C	-40 C	2	Silver	Metal	Brass	Brass Chrome over Nickel	Gold	Industrial Medical Military Testing Equipment & Measurement	Backshell	Unshielded	Chrome over Nickel	IP50 - Dust Protected
ODU A10L0C-P09MCC0-5600	Push-Pull	Polyetheretherketone (PEEK)	Plug Male Pins	200 V	Brass	Free Hanging (In-Line)	4 A	120 °C	-40 C	9	Silver	Metal	Brass	Brass Chrome over Nickel	Gold	Industrial Medical Military Testing Equipment & Measurement	Backshell	Unshielded	Chrome over Nickel	IP50 - Dust Protected	0.197 in	5.6 mm	5 mm	0.22 in
ODU A10L0C-P10MCC9-4200	Push-Pull	Polyetheretherketone (PEEK)	Plug Male Pins	200 V	Brass	Free Hanging (In-Line)	4 A	120 °C	-40 C	10	Silver	Metal	Brass	Brass Chrome over Nickel	Gold	Industrial Medical Military Testing Equipment & Measurement	Backshell	Unshielded	Chrome over Nickel	IP50 - Dust Protected
ODU A10L0C-P05MFG0-4200	Push-Pull	Polyetheretherketone (PEEK)	Plug Male Pins	200 V	Brass	Free Hanging (In-Line)	7.5 A	120 °C	-40 C	5	Silver	Metal	Brass	Brass Chrome over Nickel	Gold	Industrial Medical Military Testing Equipment & Measurement	Backshell	Unshielded	Chrome over Nickel	IP50 - Dust Protected
