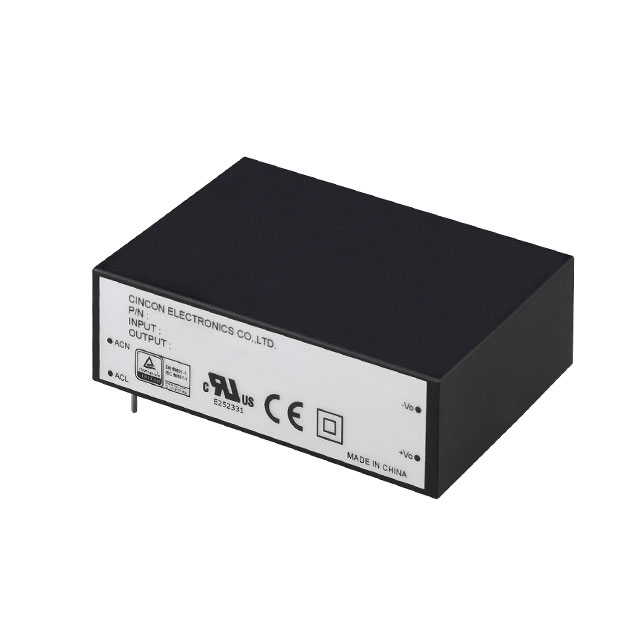

CFM21M150 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 15V 21W
| Part | Line Regulation | Load Regulation | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Power (Watts) | Package / Case | Current - Output (Max) [Max] | Standard Number | Voltage - Output 1 | Efficiency | Applications | Number of Outputs | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 0.5 % | ±1% | 70 °C | -25 °C | 1.74 " | 64.2 mm | 0.8 " | 20.4 mm | 44.2 mm | 2.53 in | Enclosed | Through Hole | 264 VAC | 90 VAC | 21 W | Module | 1.4 A | 60335-1 62368-1 | 15 V | 85 % | Household Appliances ITE (Commercial) | 1 | Universal Input | CE cURus TUV |
