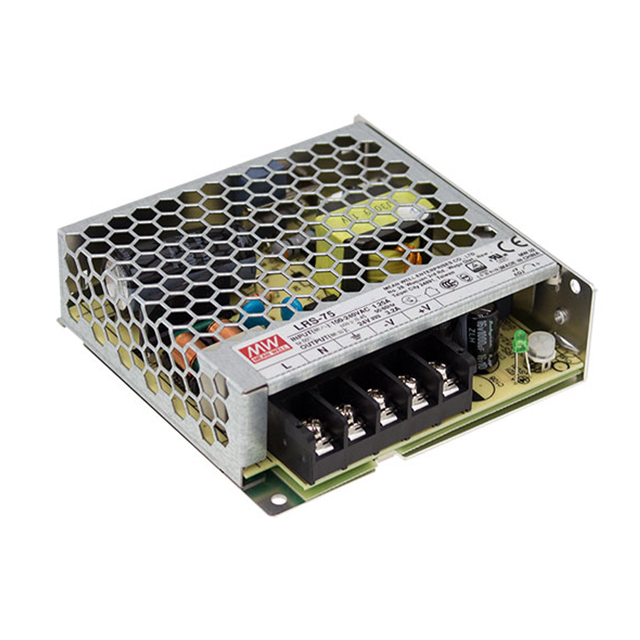

LRS-75 Series

Catalog

AC/DC CONVERTER 24V 77W

Part	Number of Outputs	Voltage - Isolation	Efficiency	Type	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Approval Agency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Power (Watts)	Mounting Type	Voltage - Output 1 [custom]	Current - Output 1 [custom]
MEAN WELL USA Inc. LRS-75-24	1	4000 V	90 %	Enclosed	3.2 A	264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV	24 V	-30 °C	70 °C	Household Appliances ITE (Commercial)	77 W	Chassis Mount
MEAN WELL USA Inc. LRS-75-12	1	4000 V	89 %	Enclosed	6 A	264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV	12 V	-30 °C	70 °C	Household Appliances ITE (Commercial)	72 W	Chassis Mount
MEAN WELL USA Inc. LRS-75-15	1	4000 V	89 %	Enclosed	5 A	264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV	15 V	-30 °C	70 °C	Household Appliances ITE (Commercial)	75 W	Chassis Mount
MEAN WELL USA Inc. LRS-75-36	1	4000 V	91.5 %	Enclosed	2.1 A	264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV		-30 °C	70 °C	Household Appliances ITE (Commercial)	76 W	Chassis Mount	36 V
MEAN WELL USA Inc. LRS-75-5	1	4000 V	86.5 %	Enclosed		264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV	5 V	-30 °C	70 °C	Household Appliances ITE (Commercial)	70 W	Chassis Mount		14 A
MEAN WELL USA Inc. LRS-75-48	1	4000 V	91.5 %	Enclosed	1.6 A	264 VAC 373 VDC	85 VAC 120 VDC	30 mm	3.82 in	1.18 in	97 mm	99 mm	3.9 "	Adjustable Output Universal Input	CB CCC CE cURus TUV	48 V	-30 °C	70 °C	Household Appliances ITE (Commercial)	77 W	Chassis Mount
