BPSX 1 Series

Catalog

AC/DC CONVERTER 8V 1W

Part	Mounting Type	Approval Agency	Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Efficiency	Features	Applications	Voltage - Output 1	Current - Output (Max)	Power (Watts)

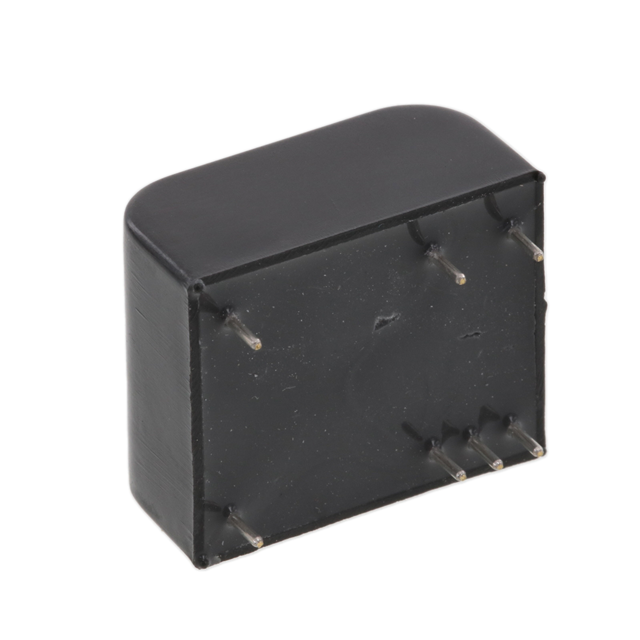

Cita Technologies, LLC. BPSX 1-08-00	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	1	70 %	Universal Input	ITE (Commercial)	8 V
Cita Technologies, LLC. BPSX 1-14-33	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	2	70 %	Universal Input	ITE (Commercial)	14 V	23 mA 71 mA	556 mW
Cita Technologies, LLC. BPSX 1-08-50	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	2	70 %	Universal Input	ITE (Commercial)	8 V	83 mA 125 mA	6.9 W
Cita Technologies, LLC. BPSX 1-08-33	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	2	70 %	Universal Input	ITE (Commercial)	8 V	53 mA 125 mA	837 mW
Cita Technologies, LLC. BPSX 1-14-50	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	2	70 %	Universal Input	ITE (Commercial)	14 V	28 mA 71 mA	747 mW

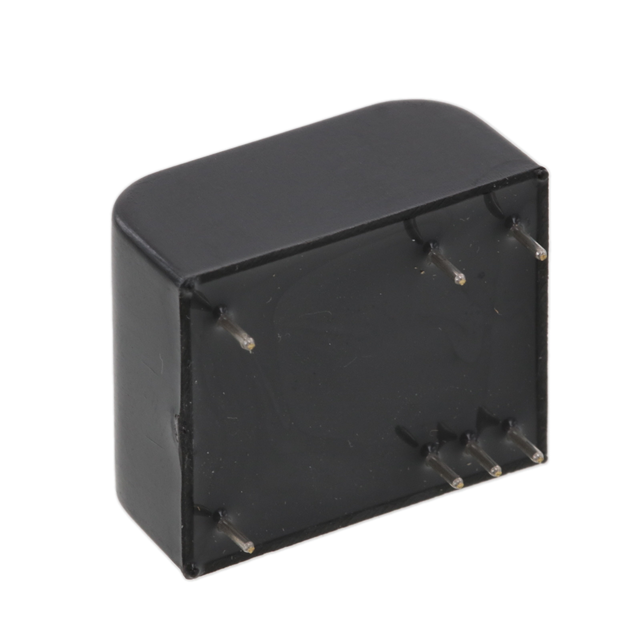

Cita Technologies, LLC. BPSX 1-14-00	Through Hole	CB cURus	Enclosed	7-DIP Module	265 VAC	85 VAC	85 °C	-40 C	0.92 "	23.2 mm	1.1 in	0.55 in	14 mm	27.9 mm	1	70 %	Universal Input	ITE (Commercial)	14 V
