9372-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT .045-.065 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Tail Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Socket Depth | Socket Depth | Contact Material | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

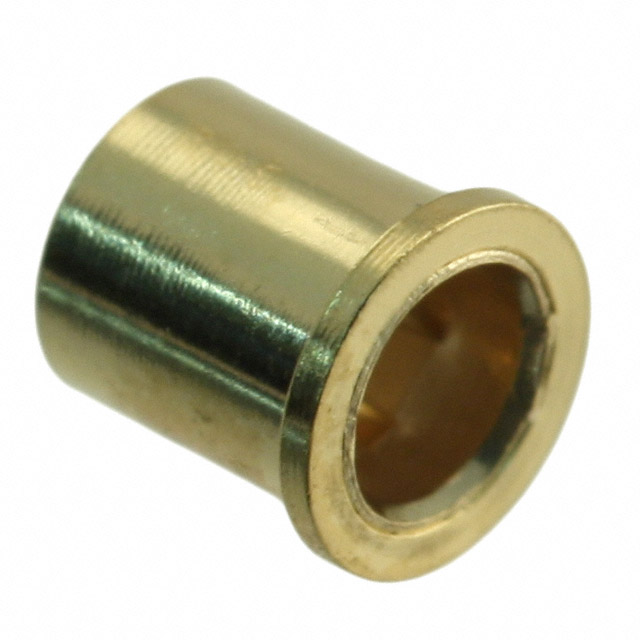

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 30 Áin | 0.76 Ám | Gold | 0.102 in | 2.59 mm | Solder | 2.24 mm | 0.088 " | 0.12 in | 3.05 mm | No Tail | 3 mm | 0.118 in | 3.05 mm | 0.12 in | Beryllium Copper | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm |

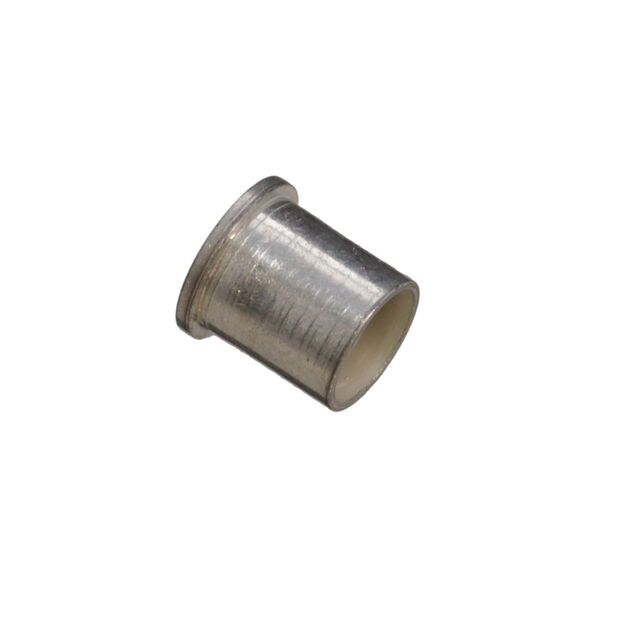

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 200 Áin | 5.08 Ám | Tin-Lead | 0.102 in | 2.59 mm | Solder | 2.24 mm | 0.088 " | 0.12 in | 3.05 mm | No Tail | 3 mm | 0.118 in | 3.05 mm | 0.12 in | Beryllium Copper | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm |

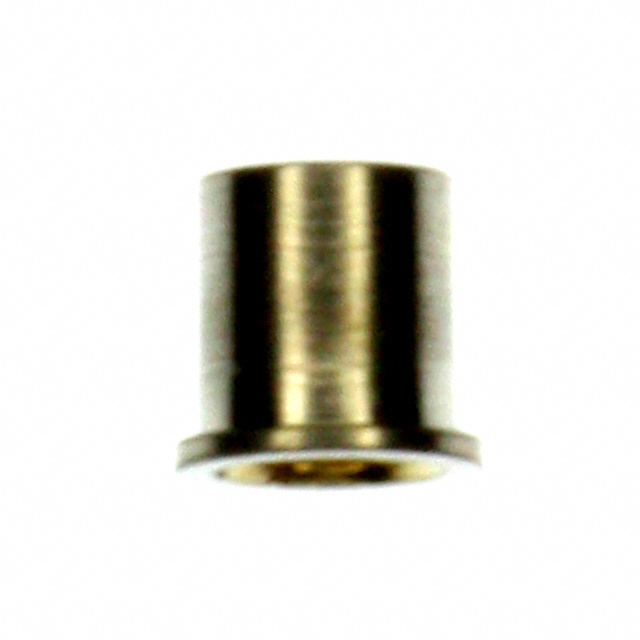

 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 Áin | 0.25 Ám | Gold | 0.102 in | 2.59 mm | Solder | 2.24 mm | 0.088 " | 0.12 in | 3.05 mm | No Tail | 3 mm | 0.118 in | 3.05 mm | 0.12 in | Beryllium Copper | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm |
