7504-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

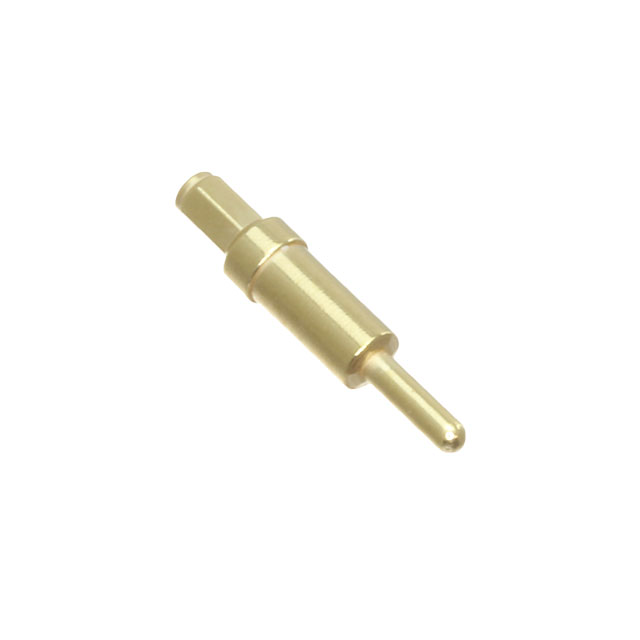

PRESS-FIT PCB PIN
| Part | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Mounting Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Single End | 0.04 in | 1.02 mm | 0.25 Ám | 10 Áin | 11.68 mm | 0.46 in | Press-Fit | 0.093 in | 2.36 mm | PC Pin | 2.54 mm | 0.1 " | 1.73 mm | 0.068 " | Brass Alloy | 1.47 mm | 0.058 in | 7.87 mm | 0.31 in | Gold | Through Hole | Non-Insulated |
