1577630 Series

Catalog

TERMINAL RT PIDG PEEK STRATO 18-16 AWG

Part	Material - Insulation	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Contact Material	Length - Overall [x]	Length - Overall [x]	Contact Finish	Terminal Type	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Thickness	Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Mounting Type	Stud/Tab Size

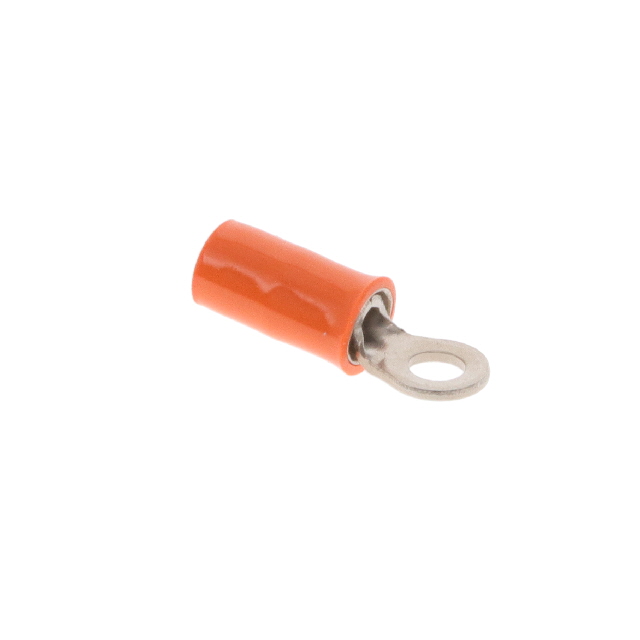

TE Connectivity AMP Connectors 1577630-1	Polyetheretherketone (PEEK)	2.67 mm	0.105 in	1.4 mm	0.055 in	Copper	0.711 in	18.06 mm	Nickel	Circular	Serrated Termination	0.218 in	5.54 mm	Insulated	0.81 mm	0.032 in	16 AWG	18 AWG	Crimp	Free Hanging (In-Line)	4 Stud
