FASTON 375 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

QUICK DISCONNECT TERMINAL 10-12AWG BRASS F 22.94MM TIN CARTON/LOOSE

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Gender	Contact Finish	Tab Thickness	Tab Thickness	Insulation	Mounting Type	Terminal Type	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width	Termination	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Note	Material	For Use With/Related Products	For Use With/Related Products	Color	Style	Terminal Size	Terminal Size	Number of Positions	Insulation Diameter	Length - Overall	Length - Overall

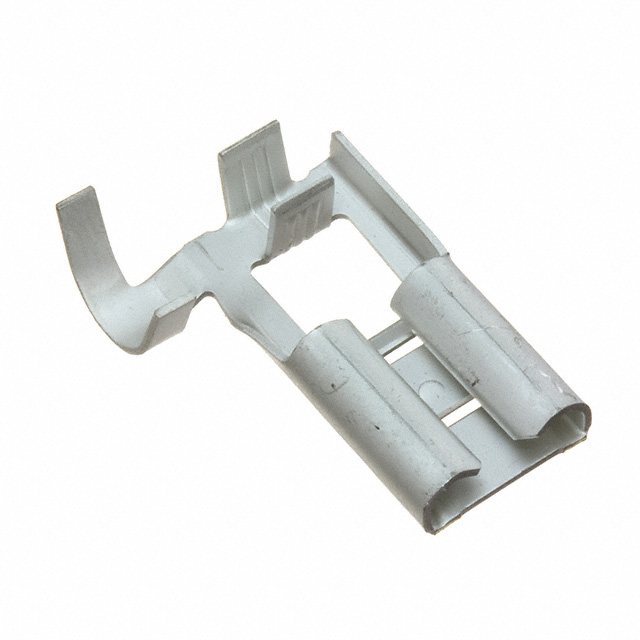

TE Connectivity AMP Connectors 151791-2	0.299 in	7.59 mm	Female	Tin	0.047 in	1.19 mm	Non-Insulated	Free Hanging (In-Line) Right Angle	Angled - 90° Flag	Brass	10 AWG	12 AWG	9.53 mm	0.375 in	Crimp
TE Connectivity AMP Connectors 150530			Female		0.02 in	0.51 mm	Non-Insulated	Free Hanging (In-Line)	Standard	Brass	10 AWG	14 AWG	9.53 mm	0.375 in	Crimp	5.33 mm	0.16 in	4.06 mm	0.21 in	1.04 in	26.42 mm	11.94 mm	0.47 in

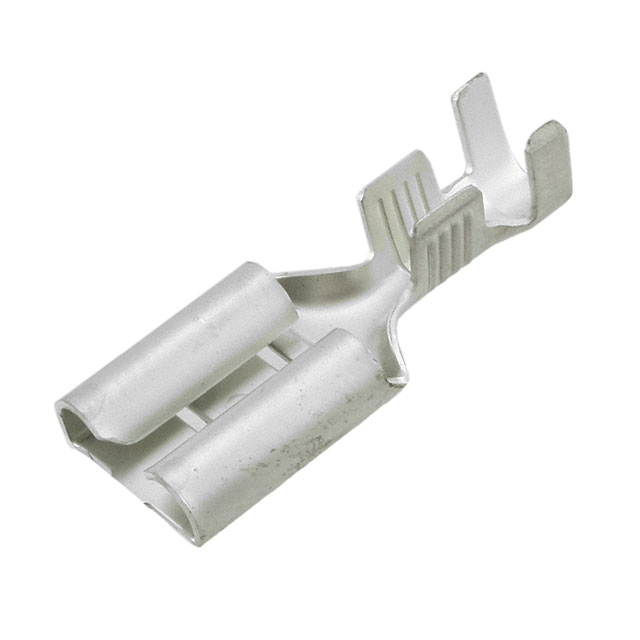

TE Connectivity AMP Connectors 150530-1			Female	Tin	0.02 in	0.51 mm	Non-Insulated	Free Hanging (In-Line)	Standard	Brass	10 AWG	14 AWG	9.53 mm	0.375 in	Crimp					1.04 in	26.42 mm	11.94 mm	0.47 in

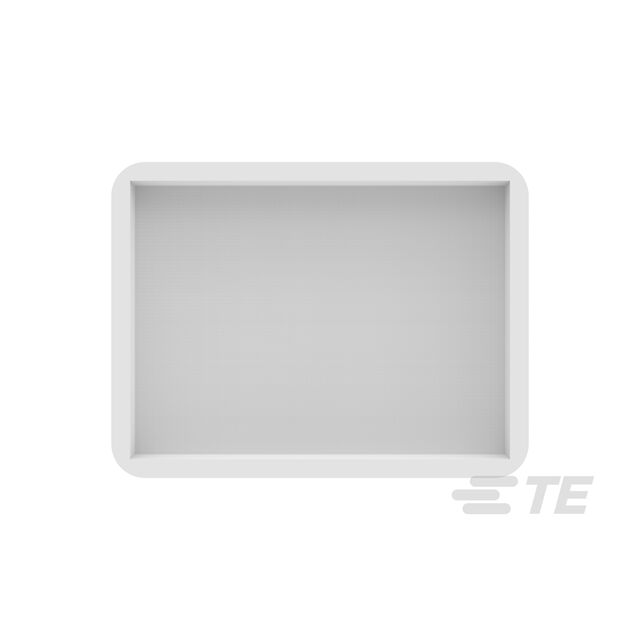

TE Connectivity AMP Connectors 280311			Female Receptacle					Free Hanging (In-Line)	Quick Connect Disconnect															Contacts Not Included	Polyamide (PA66) Nylon 6/6	Quick Connects	0.375 " 9.53 mm	Clear	Sleeve	0.375 in	9.53 mm	1

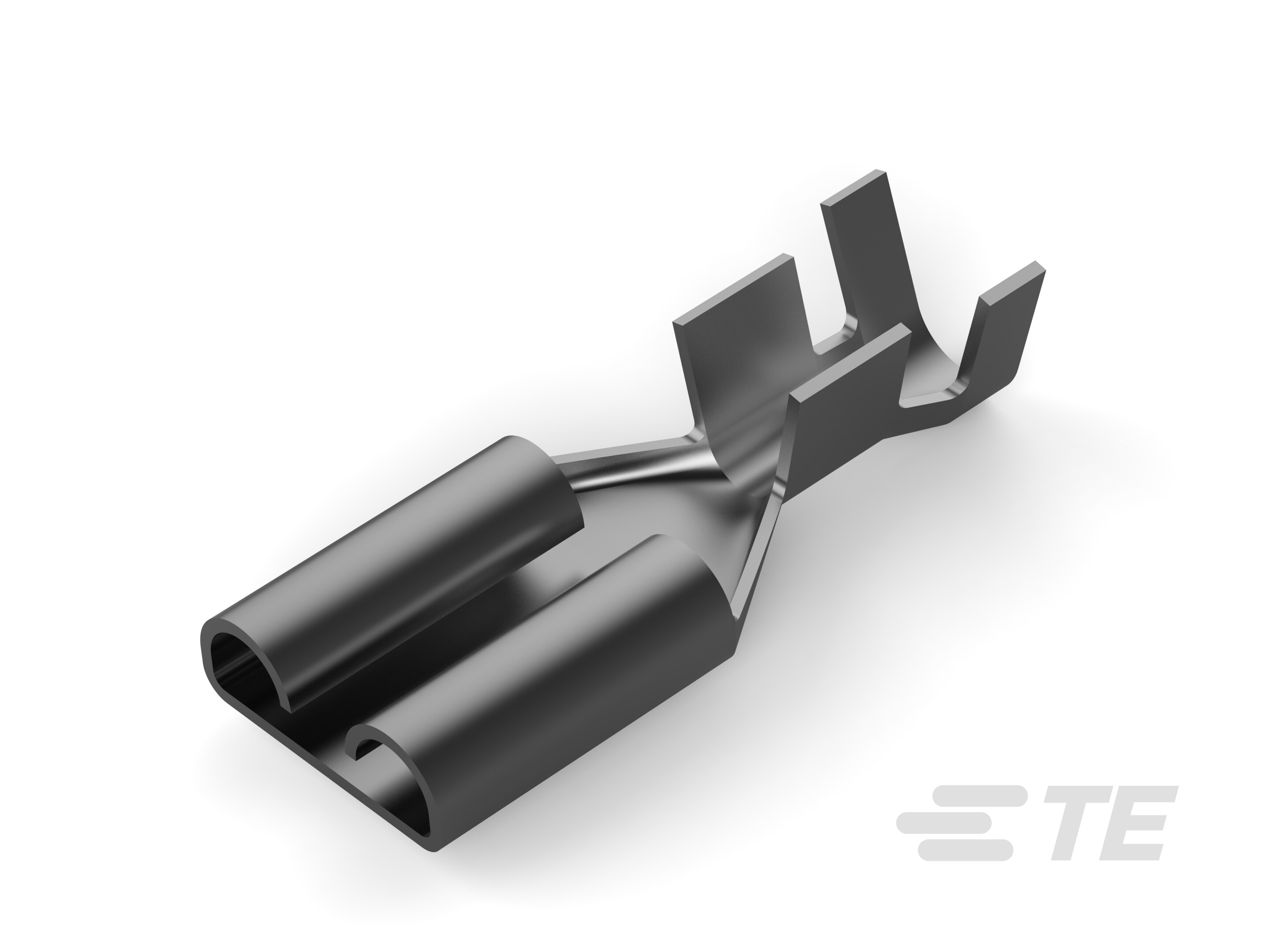

TE Connectivity AMP Connectors 280223-2			Female	Tin	0.047 in	1.19 mm	Non-Insulated	Free Hanging (In-Line)	Standard	Brass	10 AWG	11 AWG	9.53 mm	0.375 in	Crimp		0.154 "		0.201 in	1.071 in	27.2 mm	11.9 mm	0.469 "										3.91 mm 5.1 mm
TE Connectivity AMP Connectors 154897-2			Female	Tin	0.047 in	1.19 mm	Non-Insulated	Free Hanging (In-Line) Right Angle	Angled - 90° Flag	Brass	10 AWG	12 AWG	9.53 mm	0.375 in	Crimp	5.94 mm	0.135 "	3.43 mm	0.234 in
TE Connectivity AMP Connectors 5-160521-2			Female	Tin	0.047 in	1.19 mm	Non-Insulated	Free Hanging (In-Line)	Standard	Brass	10 AWG	11 AWG	9.53 mm	0.375 in	Crimp					1.031 in	26.19 mm	11.9 mm	0.469 "

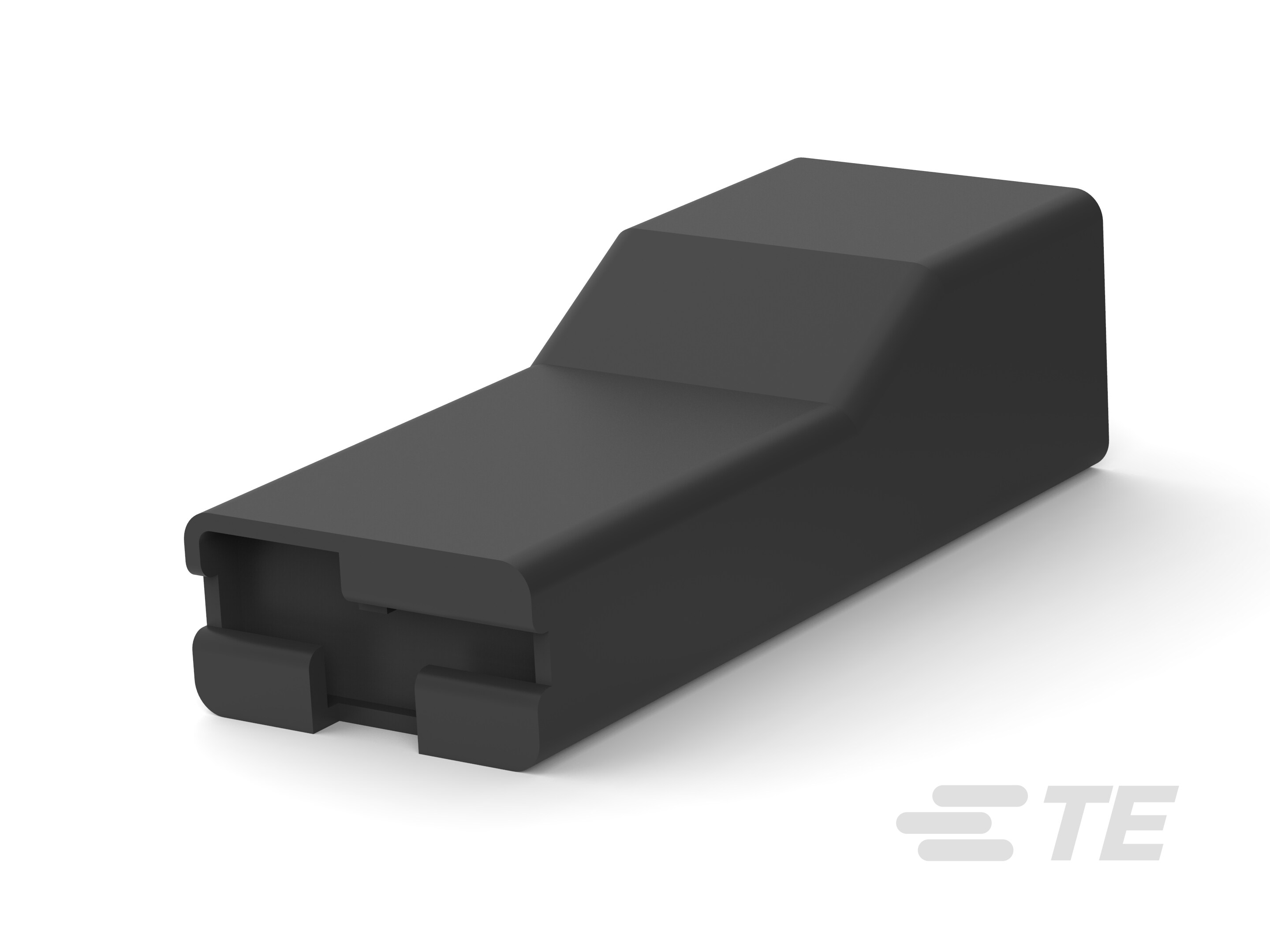

TE Connectivity AMP Connectors 280311-5			Female Receptacle					Free Hanging (In-Line)	Quick Connect Disconnect																	Quick Connects	0.375 " 9.53 mm	Black	Sleeve	0.375 in	9.53 mm	1
TE Connectivity AMP Connectors 151791-1	0.299 in	7.59 mm	Female		0.047 in	1.19 mm	Non-Insulated	Free Hanging (In-Line) Right Angle	Angled - 90° Flag	Brass	10 AWG	12 AWG	9.53 mm	0.375 in	Crimp
TE Connectivity AMP Connectors 1742375-1			Male	Tin	0.047 in	1.19 mm	Non-Insulated	Board Chassis	Standard	Brass			9.53 mm	0.375 in	Rivet Screw Stud							12.7 mm	0.5 "											25.4 mm	1 in
