0660-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Tail Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter	Mounting Hole Diameter	Termination

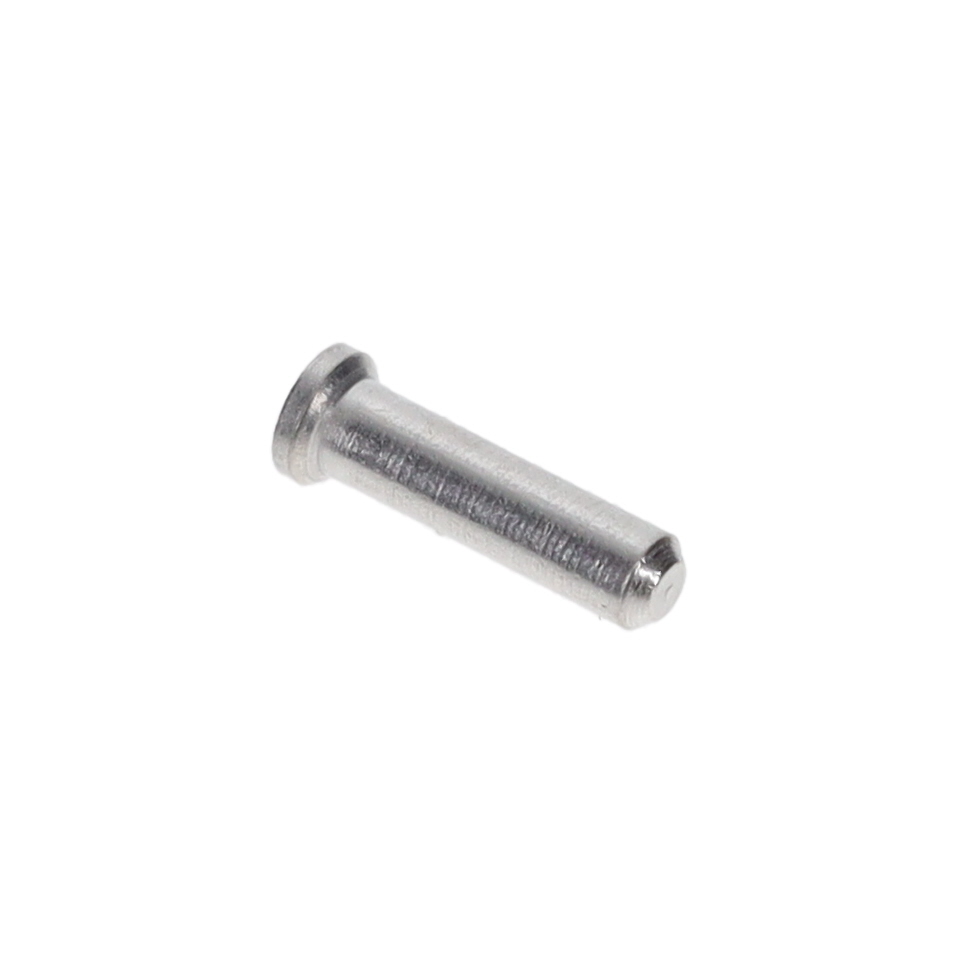

Mill-Max Manufacturing Corp. 0660-0-15-80-30-27-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Gold	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	30 Áin	0.76 Ám	1.3 mm	0.051 in	Solder

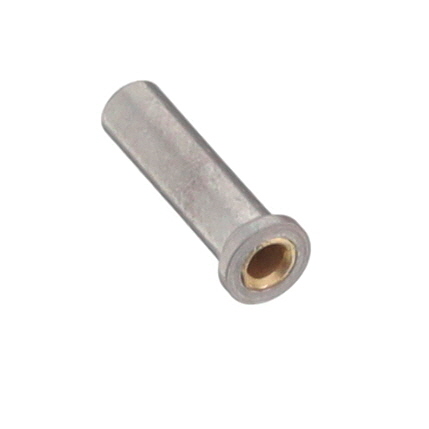

Mill-Max Manufacturing Corp. 0660-0-15-01-30-14-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Gold	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	10 Áin	0.25 Ám	1.3 mm	0.051 in	Solder

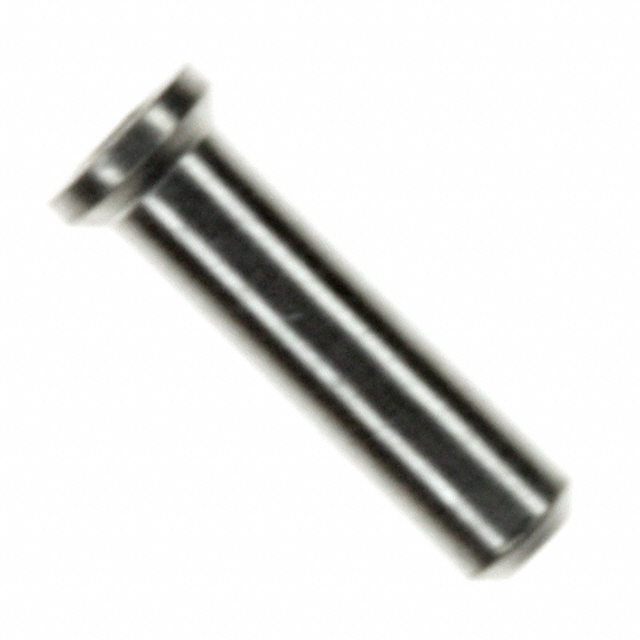

Mill-Max Manufacturing Corp. 0660-0-15-01-30-27-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Gold	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	30 Áin	0.76 Ám	1.3 mm	0.051 in	Solder
Mill-Max Manufacturing Corp. 0660-0-15-80-30-84-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Tin	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	200 Áin	5.08 Ám	1.3 mm	0.051 in	Solder
Mill-Max Manufacturing Corp. 0660-0-15-80-30-14-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Gold	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	10 Áin	0.25 Ám	1.3 mm	0.051 in	Solder

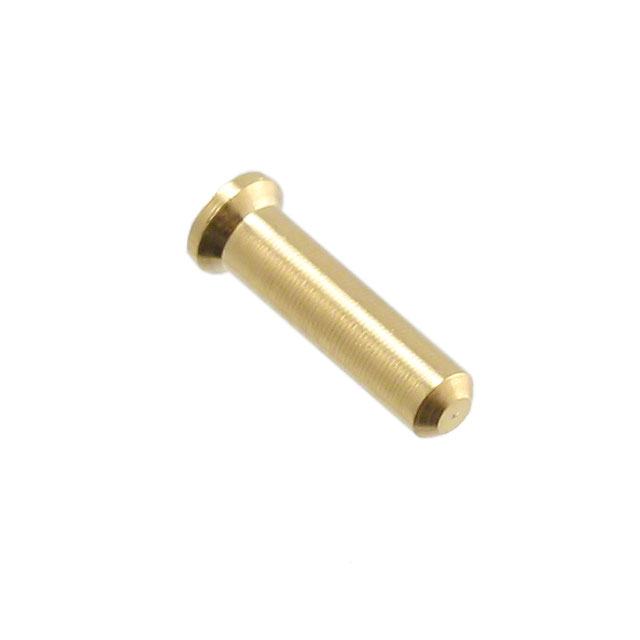

Mill-Max Manufacturing Corp. 0660-0-15-15-30-27-10-0	-55 C	125 °C	4.57 mm	0.18 in	No Tail	Gold	0.068 in	1.73 mm	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	30 Áin	0.76 Ám	1.3 mm	0.051 in	Solder
