USB 3.1 SuperSpeed Data Switch, 10 Gbps
Key Features
• 10 GHz Typical Bandwidth
• USB 3.1 SuperSpeed 5Gbps and10 Gbps Switch
-1.0 dB Typical Insertion Loss at 2.5 GHz
• Low Active Power of 12 μA Typical
• Low Shutdown Power of < 1 μA Max.
• 2 kV HBM ESD Protection

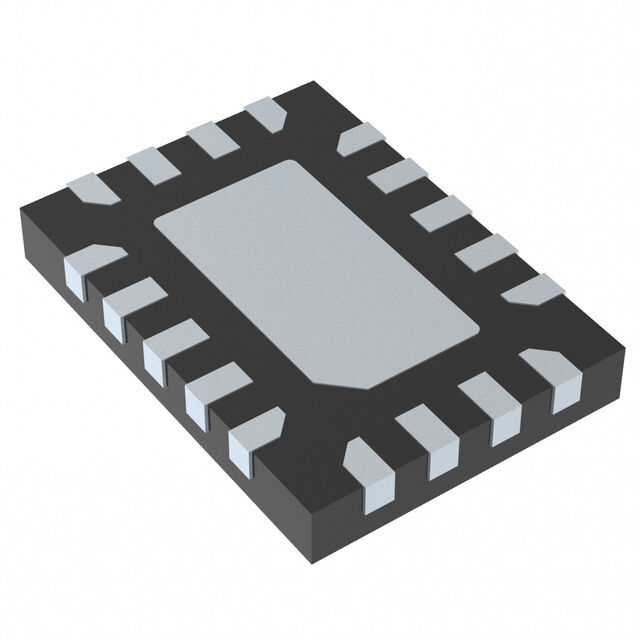

• Small Packaging, 18 Lead TMLP
• Wide VDD Operating Range, 1.5 V-5.0 V
Description
AI
The FUSB340 is a 2:1 data switch for USB SuperSpeed Gen1 and Gen2, 5 Gbps and 10 Gbps data. It is targeted at the mobile device market and for use in Type-C applications where a reversible cable requires a switch.The FUSB340 data switch offers superior performance various high speed data transmission protocols:
