292161 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

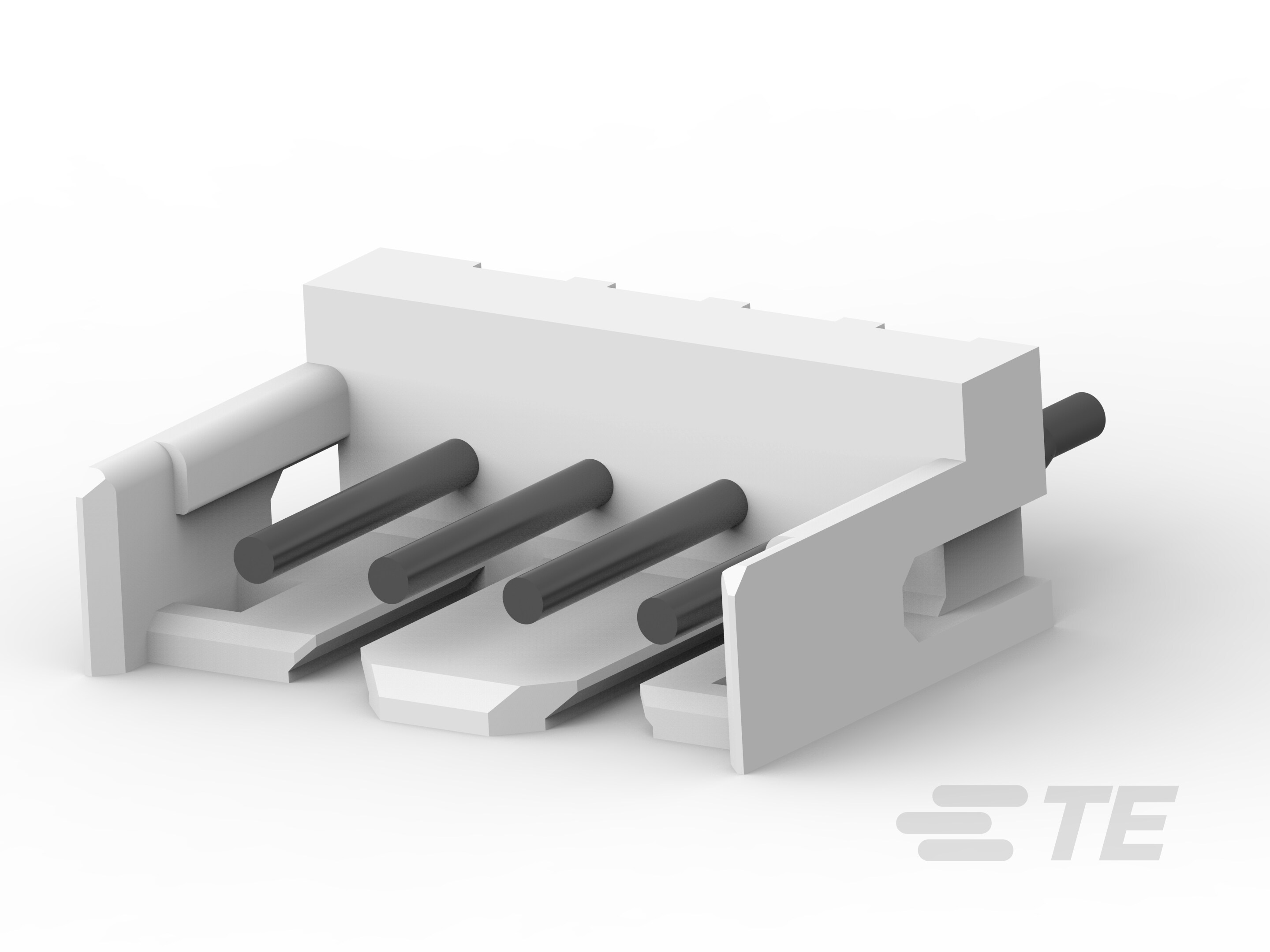

CT P/HDR ASSY V 4P W/KINK NAT
| Part | Number of Rows | Contact Type | Insulation Material | Contact Length - Post | Contact Length - Post [x] | Material Flammability Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Shrouding | Voltage Rating | Applications | Contact Shape | Termination | Overall Contact Length | Overall Contact Length | Mounting Type | Style | Pitch - Mating [x] | Pitch - Mating [x] | Contact Material | Current Rating (Amps) | Connector Type | Fastening Type | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Male Pin | Polyamide (PA66) Nylon 6/6 | 3.2 mm | 0.126 in | UL94 V-0 | All | 6.8 mm | 0.268 in | Shrouded - 3 Wall | 125 VAC | General Purpose | Circular | Kinked Pin Solder | 0.37 in | 9.4 mm | Through Hole | Board to Cable/Wire | 0.079 in | 2 mm | Brass | Varies by Wire Gauge | Header | Detent Lock | Tin | 0.177 in | 4.5 mm | Natural | 4 |

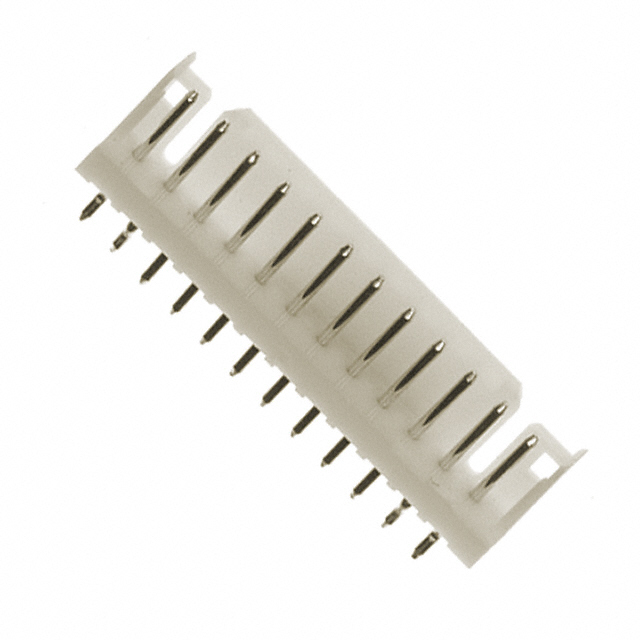

 TE Connectivity Raychem Cable Protection | 1 | Male Pin | Polyamide (PA66) Nylon 6/6 | 3.2 mm | 0.126 in | UL94 V-0 | All | 6.8 mm | 0.268 in | Shrouded - 3 Wall | 125 VAC | General Purpose | Circular | Kinked Pin Solder | 0.37 in | 9.4 mm | Through Hole | Board to Cable/Wire | 0.079 in | 2 mm | Brass | Varies by Wire Gauge | Header | Detent Lock | Tin | 0.177 in | 4.5 mm | Natural | 12 |

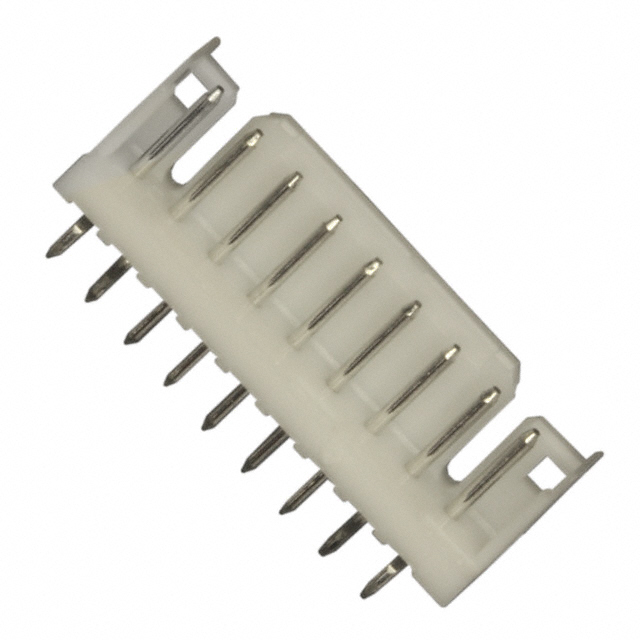

 TE Connectivity Raychem Cable Protection | 1 | Male Pin | Polyamide (PA66) Nylon 6/6 | 3.2 mm | 0.126 in | UL94 V-0 | All | 6.8 mm | 0.268 in | Shrouded - 3 Wall | 125 VAC | General Purpose | Circular | Kinked Pin Solder | 0.37 in | 9.4 mm | Through Hole | Board to Cable/Wire | 0.079 in | 2 mm | Brass | Varies by Wire Gauge | Header | Detent Lock | Tin | 0.177 in | 4.5 mm | Natural | 9 |
TE Connectivity Raychem Cable Protection | 1 | Male Pin | Polyamide (PA66) Nylon 6/6 | 3.2 mm | 0.126 in | UL94 V-0 | All | 6.8 mm | 0.268 in | Shrouded - 3 Wall | 125 VAC | General Purpose | Circular | Kinked Pin Solder | 0.37 in | 9.4 mm | Through Hole | Board to Cable/Wire | 0.079 in | 2 mm | Brass | Varies by Wire Gauge | Header | Detent Lock | Tin | 0.177 in | 4.5 mm | Blue | 6 |
 TE Connectivity Raychem Cable Protection | 1 | Male Pin | Polyamide (PA66) Nylon 6/6 | 3.2 mm | 0.126 in | UL94 V-0 | All | 6.8 mm | 0.268 in | Shrouded - 3 Wall | 125 VAC | General Purpose | Circular | Kinked Pin Solder | 0.37 in | 9.4 mm | Through Hole | Board to Cable/Wire | 0.079 in | 2 mm | Brass | Varies by Wire Gauge | Header | Detent Lock | Tin | 0.177 in | 4.5 mm | Black |
