AWHW2-20 Series

Catalog

CONN HEADER R/A 20POS 2MM

Part	Contact Shape	Insulation Material	Insulation Color	Mounting Type	Style	Contact Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height	Insulation Height	Termination	Connector Type	Material Flammability Rating	Fastening Type	Features	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Contact Length - Post [custom]	Contact Length - Post

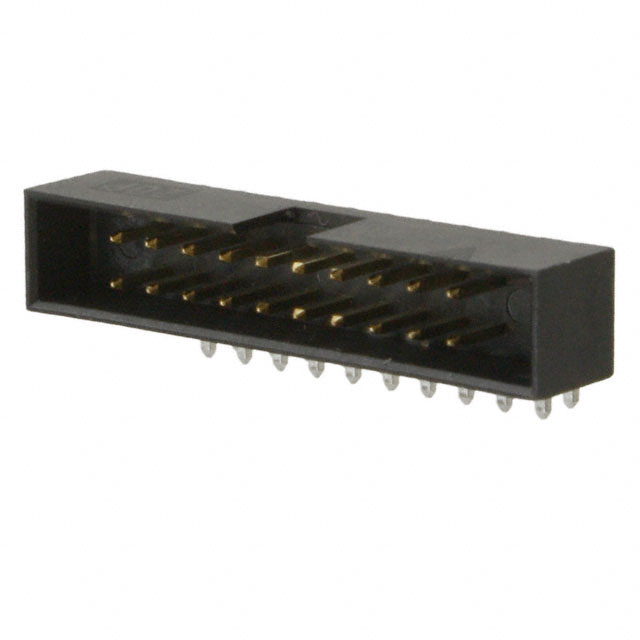

Assmann WSW Components AWHW2-20A-0202-T-R	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Black	Right Angle Through Hole	Board to Cable/Wire	Brass	4 mm	0.157 in	Shrouded - 4 Wall	0.217 in	5.51 mm	Solder	Header	UL94 V-0	Push-Pull	Keying Slot	0.079 "	2 mm	Male Pin	Flash	2	20	1.5 A	Gold	-40 C	105 ░C	2 mm	0.079 in	All	0.11 in	2.79 mm

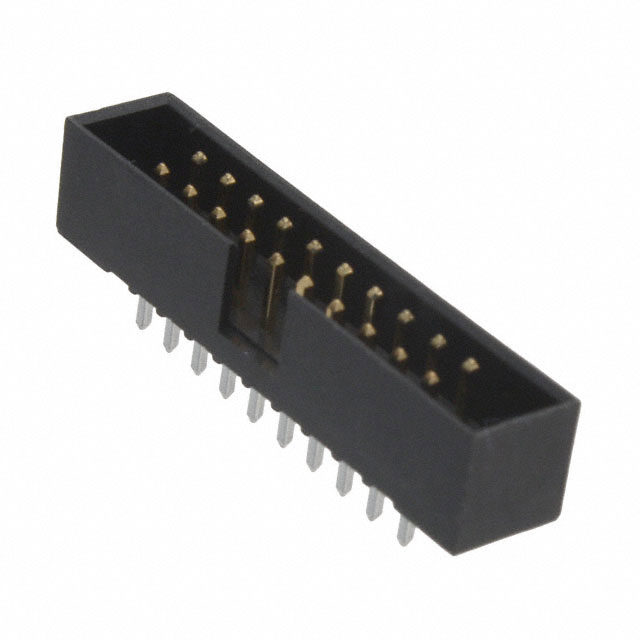

Assmann WSW Components AWHW2-20G-0202-T-R	Square	Glass Filled Nylon 9T Polyamide (PA9T)	Black	Through Hole	Board to Cable/Wire	Brass	4 mm	0.157 in	Shrouded - 4 Wall	0.226 in	5.74 mm	Solder	Header	UL94 V-0	Push-Pull	Keying Slot	0.079 "	2 mm	Male Pin	Flash	2	20	1.5 A	Gold	-40 C	105 ░C	2 mm	0.079 in	All	0.11 in	2.79 mm
