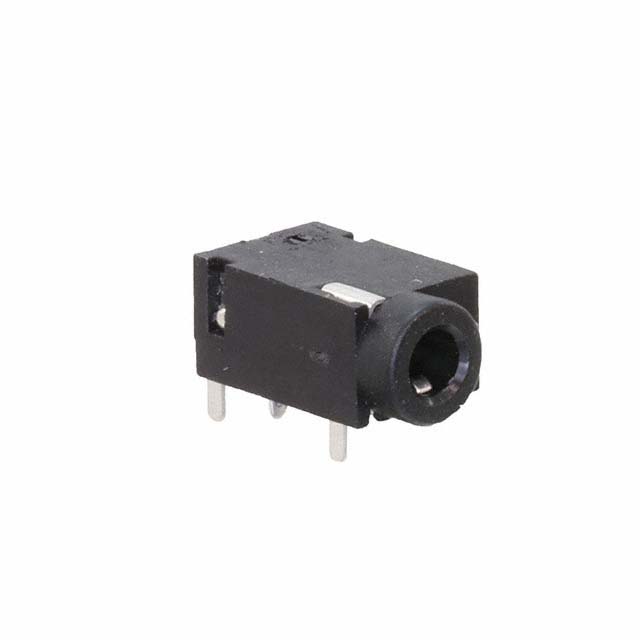

ASJ-190 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Voltage - Rated | Mating Length/Depth | Mating Length/Depth | Contact Material | Contact Material - Plating | Current Rating (Amps) | Housing Material | Body Color | Termination | Mounting Type | Signal Lines | Connector Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Insulation Color | Internal Switch(s) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 30 V | 11 mm | 0.433 in | Phosphor Bronze | Silver | 0.5 A | Polybutylene Terephthalate (PBT) | Black | Solder | Right Angle Through Hole | Stereo (3 Conductor TRS) | Phone Jack | 2.5 mm | 0.098 " | Unshielded | -20 ░C | 70 °C | 2.6 mm | 0.102 in | Female | Black | 3 | 3 | Board Guide |
