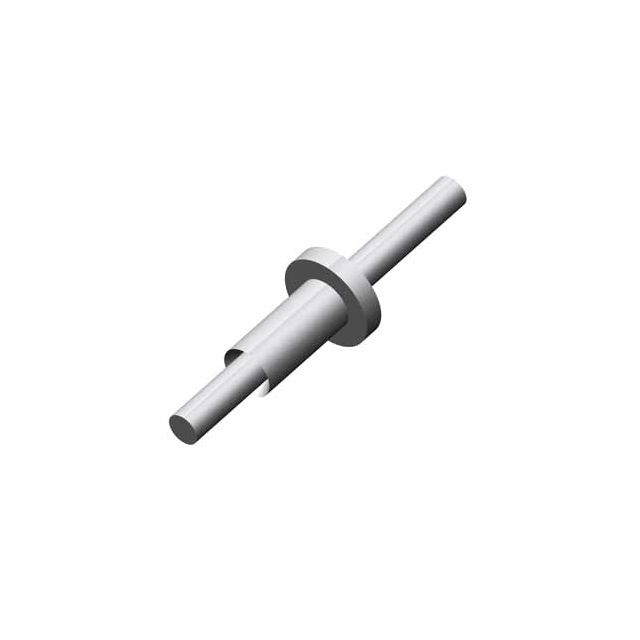

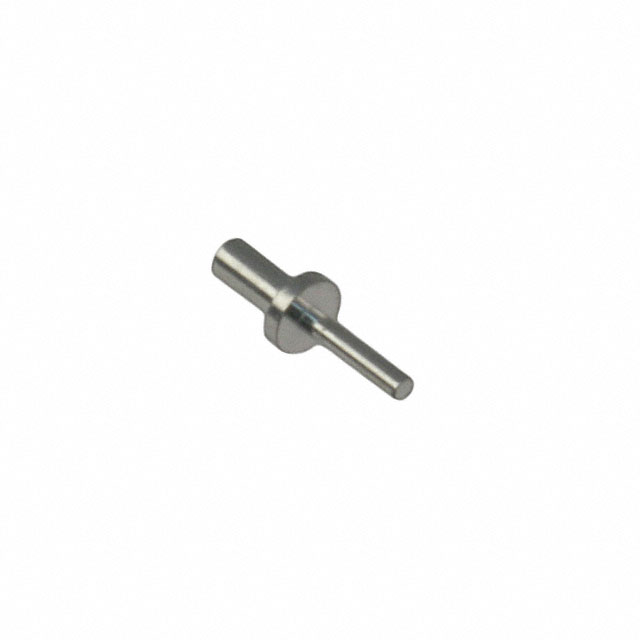

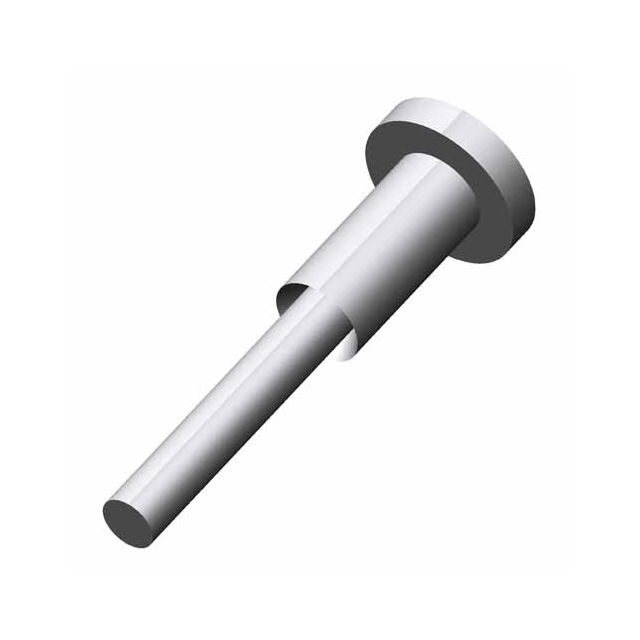

H2106 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TURRET, 1.41MM, NON INSULATED ROHS COMPLIANT: YES
| Part | Termination | Board Thickness [custom] | Board Thickness [custom] | Insulation | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Terminal Type | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Mounting Type | Length - Above Flange | Length - Above Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Swage | 0.094 in | 2.39 mm | Non-Insulated | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | 0.032 " | 0.81 mm | Single End | PC Pin | 7.39 mm | 0.291 in | 0.094 " | 2.39 mm | Tin | 0.115 " | 2.92 mm | Brass | Through Hole | 3.96 mm | 0.156 in | ||||
 Harwin Inc. | Solder | 0.094 in | 2.39 mm | Non-Insulated | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | Single End | PC Pin | 0.094 " | 2.39 mm | Tin | 0.285 " | 7.24 mm | Brass | Through Hole | 0.81 mm | 0.032 in | ||||||||
 Harwin Inc. | Swage | 0.094 in | 2.39 mm | Non-Insulated | 0.056 in | 1.42 mm | 0.052 in | 1.32 mm | 0.032 " | 0.81 mm | Double End | PC Pin | 0.094 " | 2.39 mm | Tin | 0.199 " | 5.05 mm | Brass | Through Hole | 3.96 mm | 0.156 in | 9.53 mm | 0.375 in |
