LJCKBP Series

Catalog

LED OSLON SIGNAL RED 620NM SMD

Part	Thermal Resistance of Package	Current - Test	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Current - Max [Max]	Viewing Angle	Wavelength [Max]	Wavelength [Min]	Wavelength	Package / Case	Package / Case	Temperature - Test	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Color	Mounting Type	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]

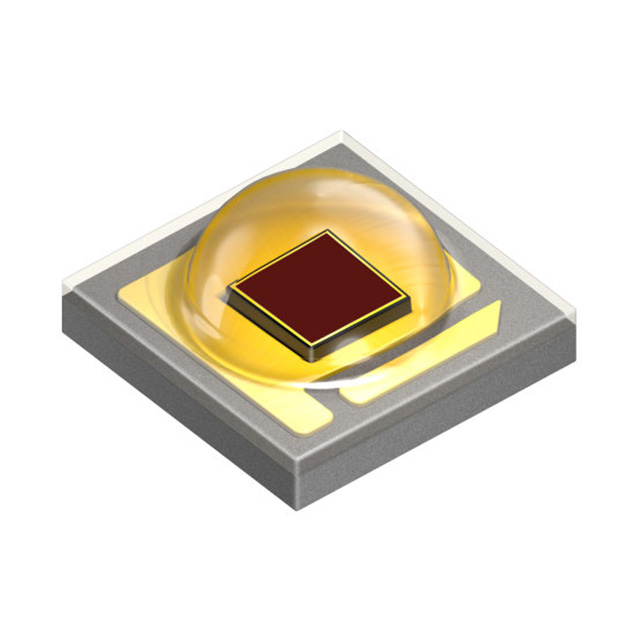

ams-OSRAM USA INC. LJ CKBP-JZKZ-25-1-350-R18-Z	9.6 °C/W	350 mA	87 lm	61 lm	112 lm	1 A	125 °	628 nm	612 nm	620 nm	3030 Metric	1212	25 °C	2.15 V	1.82 mm	0.072 in	116 lm/W	Red	Surface Mount	SMD	3 mm	0.118 in	3 mm	0.118 "

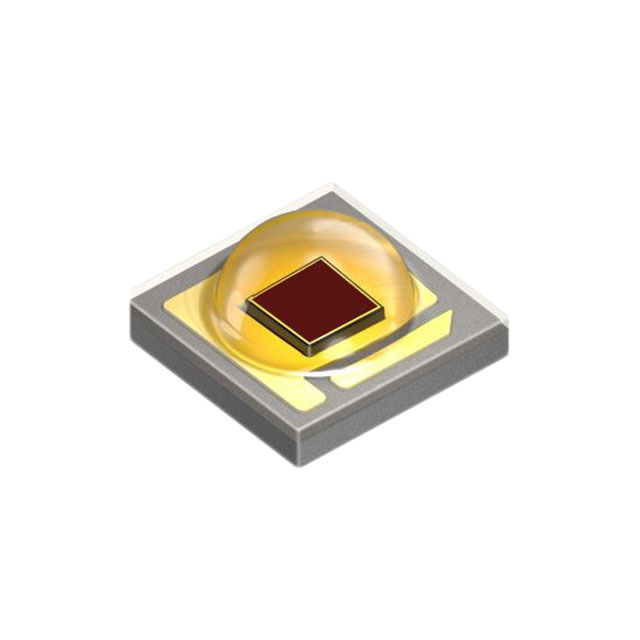

ams-OSRAM USA INC. LJ CKBP-HYKX-47-1-350-R18-Z	9.6 °C/W	350 mA	58 lm			1 A	125 °			625 nm	3030 Metric	1212	25 °C	2.15 V	1.82 mm	0.072 in	77 lm/W	Red	Surface Mount	SMD	3 mm	0.118 in	3 mm	0.118 "
