L717TWA7 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB PLUG 7POS R/A SLDR

Part	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Connector Style	Features	Shell Size, Connector Layout	Number of Rows	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing	Dielectric Material	Color	Voltage Rating	Mounting Type	Flange Feature	Number of Positions	Current Rating (Amps)	Number of Positions [custom]	Contact Finish Thickness	Material Flammability Rating
Amphenol ICC (Commercial Products) L717TWA7W2PMCSV	Gold	155 °C	-55 °C	Male Pins Plug	Coax Signal	Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7	2	5	0.319 in	8.1 mm	Thermoplastic	Black	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)
Amphenol ICC (Commercial Products) L717TWA7W2PSYRM84	Gold	155 °C	-55 °C	Male Pins Plug		Combo D-Sub	Board Lock Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm						Thermoplastic	Black	300 VDC	Panel Mount Through Hole	Female Screwlock (4-40) Mating Side	7	7.5 A

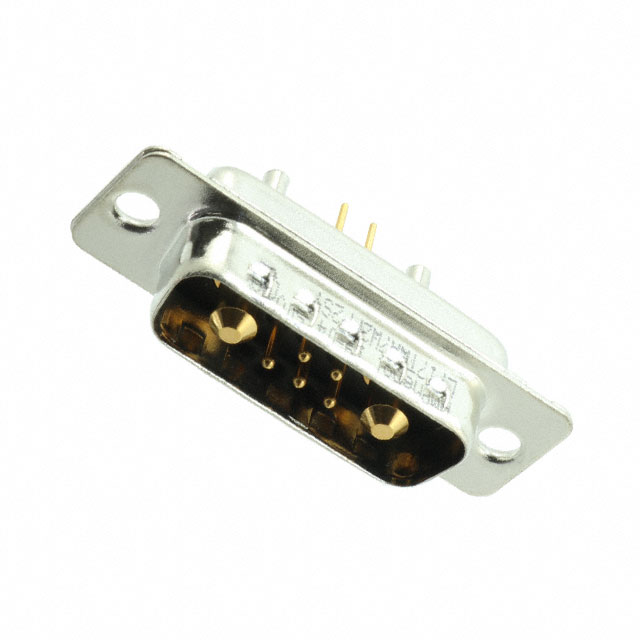

Amphenol ICC (Commercial Products) L717TWA7W2PP2SY	Gold	155 °C	-55 °C	Male Pins Plug	Signal and Power	Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7					Thermoplastic	Black	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)		7.5 A	2
Amphenol ICC (Commercial Products) L717TWA7W2PSY	Gold	155 °C	-55 °C	Male Pins Plug		Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm						Thermoplastic	Black	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)	7	7.5 A
Amphenol ICC (Commercial Products) L717TWA7W2PMP3SV4FRM6	Gold	155 °C	-55 °C	Male Pins Plug	Signal and Power	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7			0.319 in	8.1 mm	Thermoplastic	Black	300 VDC	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side		7.5 A	2
Amphenol ICC (Commercial Products) L717TWA7W2PC817	Gold	155 °C	-55 °C	Male Pins Plug		Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2		Brass								Thermoplastic	Black	300 VDC			7	7.5 A		Flash
Amphenol ICC (Commercial Products) L717TWA7W2P4RA165	Gold	155 °C	-55 °C	Male Pins Plug		Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2		Brass	16 µin	0.41 µm						Thermoplastic Glass Filled	Black	300 VDC		Cable Side (4-40) Mating Side Female Screwlock (4-40)	7	7.5 A			UL94 V-0
Amphenol ICC (Commercial Products) L717TWA7W2PP2SYRM84	Gold	155 °C	-55 °C	Male Pins Plug	Signal and Power	Combo D-Sub	Board Lock Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7					Thermoplastic	Black	300 VDC	Panel Mount Through Hole	Female Screwlock (4-40) Mating Side		7.5 A	2
Amphenol ICC (Commercial Products) L717TWA7W2PMP2SV4FRM6	Gold	155 °C	-55 °C	Male Pins Plug	Signal and Power	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7			0.319 in	8.1 mm	Thermoplastic Glass Filled	Black	300 VDC	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side		7.5 A	2
Amphenol ICC (Commercial Products) L717TWA7W2PEP3SV	Gold	155 °C	-55 °C	Male Pins Plug	Signal and Power	Combo D-Sub	Grounding Indents	2 (DA A) - 7W2	2	Solder	Brass	16 µin	0.41 µm	7			0.406 in	10.3 mm	Thermoplastic	Black	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)		7.5 A	2
