ELF-22 Series

Catalog

CMC 6A 2LN TH

Part	Number of Lines	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]

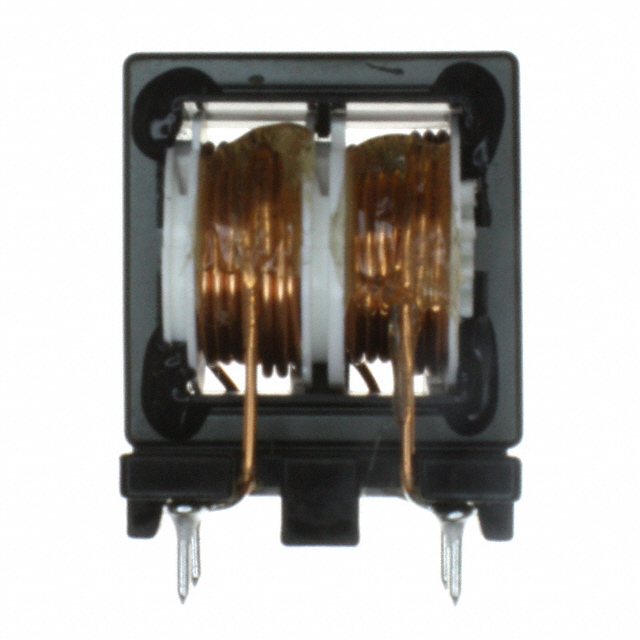

Panasonic Industrial Automation Sales ELF-22V060B	2	39 mm	1.535 in	Through Hole	27 mOhm	4 Lead	Vertical	1.26 in	23 mm	32 mm	0.906 in	6 A

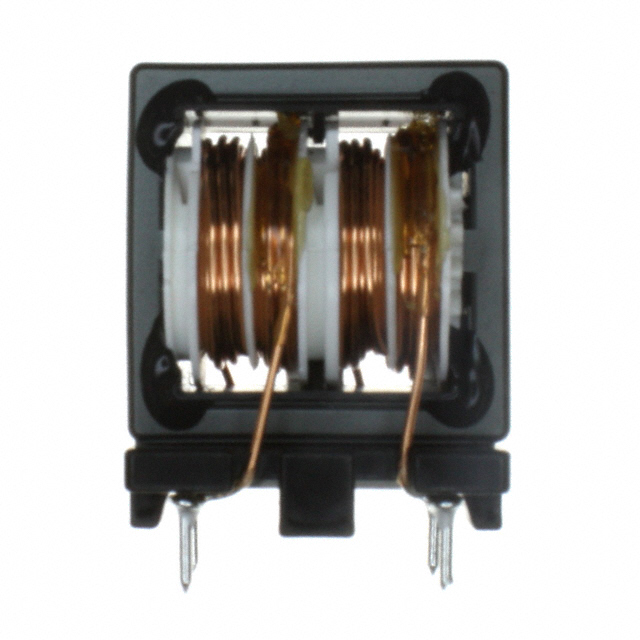

Panasonic Industrial Automation Sales ELF-22V040A	2	39 mm	1.535 in	Through Hole		4 Lead	Vertical	1.26 in	23 mm	32 mm	0.906 in	4 A

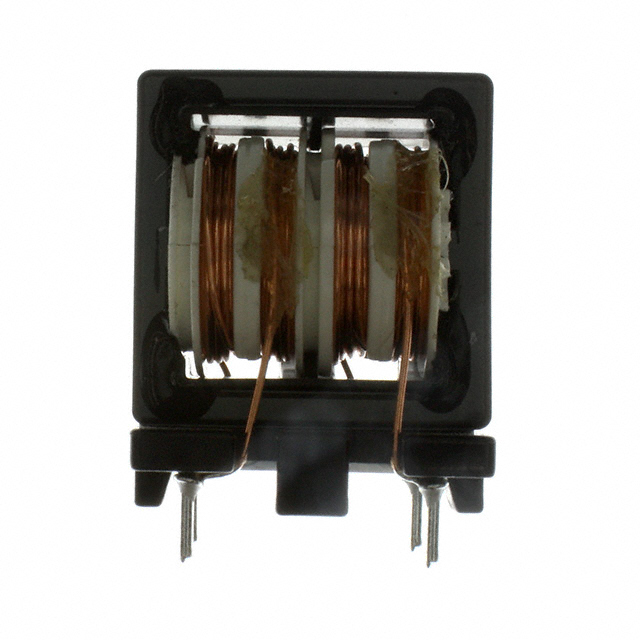

Panasonic Industrial Automation Sales ELF-22V025C	2	39 mm	1.535 in	Through Hole	115 mOhm	4 Lead	Vertical	1.26 in	23 mm	32 mm	0.906 in	2.5 A

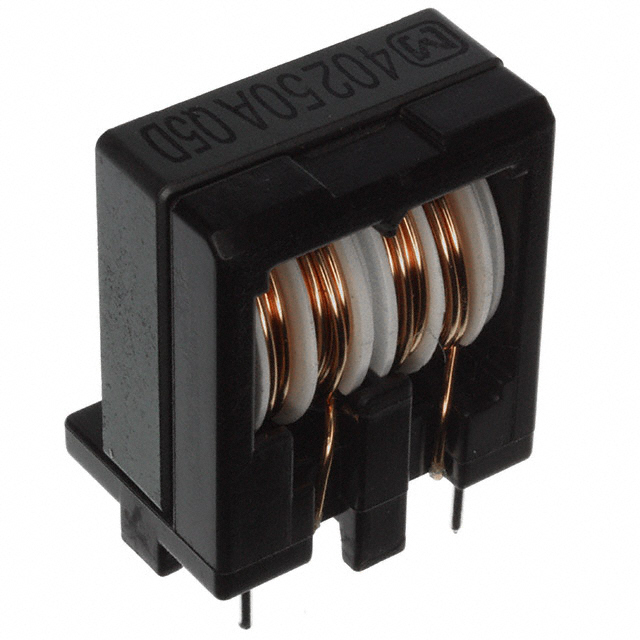

Panasonic Industrial Automation Sales ELF-22V050A	2	39 mm	1.535 in	Through Hole	38 mOhm	4 Lead	Vertical	1.26 in	23 mm	32 mm	0.906 in	5 A

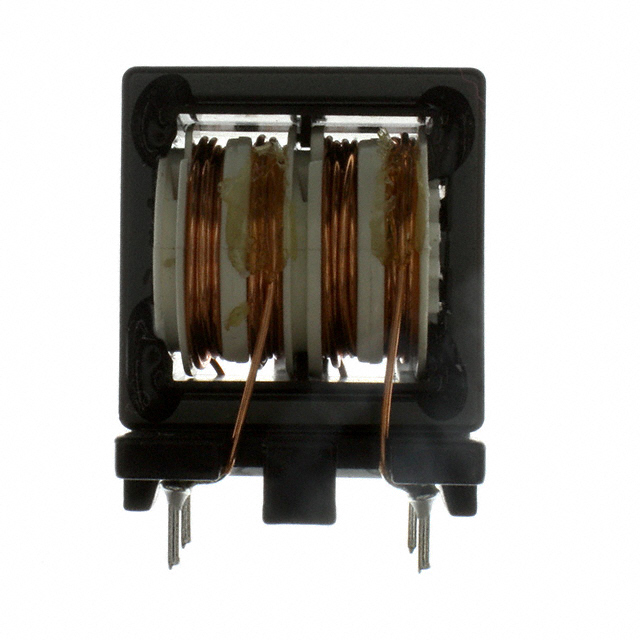

Panasonic Industrial Automation Sales ELF-22V030C	2	39 mm	1.535 in	Through Hole		4 Lead	Vertical	1.26 in	23 mm	32 mm	0.906 in	3 A
