3541H Series

Catalog

POT 10K OHM 2W HYBRITRON LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Number of Turns	Rotation	Taper	Actuator Length [x]	Actuator Length [x]	Built in Switch	Tolerance	Power (Watts)	Resistive Material	Resistance (Ohms)	Actuator Type	Bushing Thread	Mounting Type	Number of Gangs	Temperature Coefficient	Adjustment Type	Termination Style	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Resistance (Ohms) [custom]
Bourns Inc. 3541H-91-103L	22.23 mm	0.875 "	10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®	10k	Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm
Bourns Inc. 3541H-1-203L	22.23 mm	0.875 "	10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®		Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm	20 kOhms

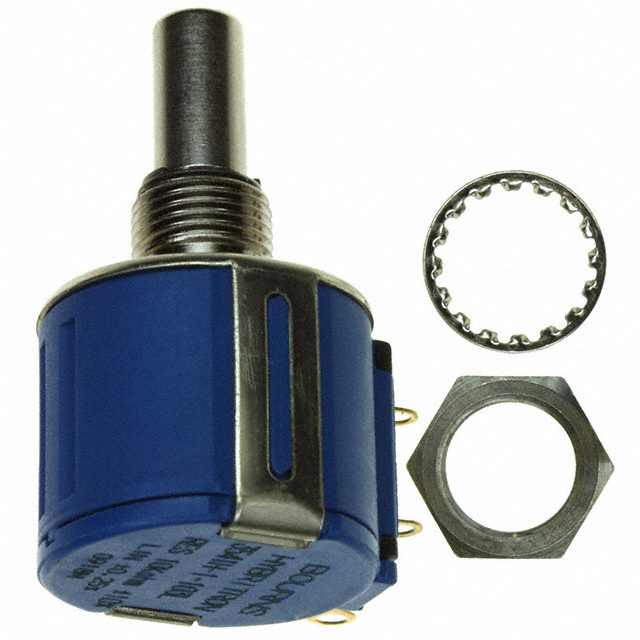

Bourns Inc. 3541H-1-103	22.23 mm	0.875 "	10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®	10k	Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm

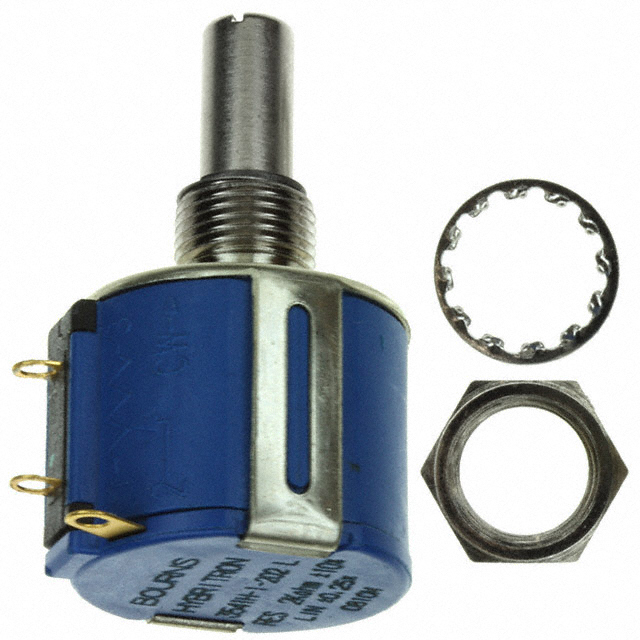

Bourns Inc. 3541H-1-202L	22.23 mm	0.875 "	10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®		Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm	2 kOhms

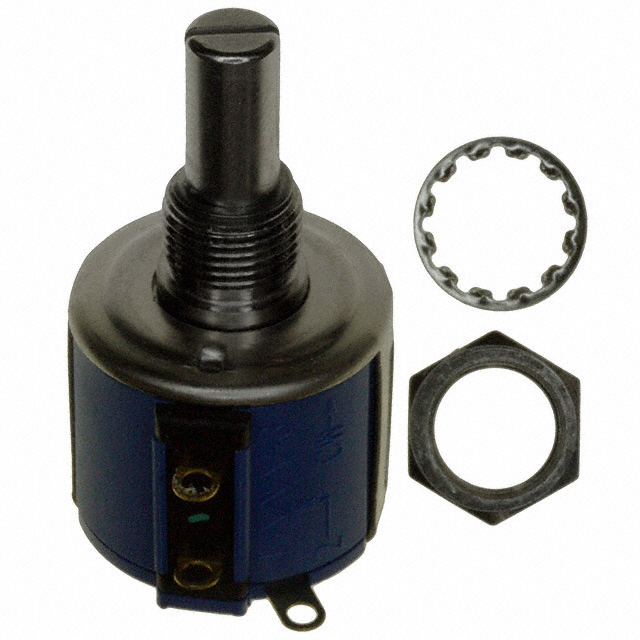

Bourns Inc. 3541H-1-503L	22.23 mm	0.875 "	10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®		Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm		50 kOhms
Bourns Inc. 3541H-1-502L			10	3600 °	Linear	0.812 in	20.63 mm	None	10 %	2 W	Hybritron®		Slotted	3/8-32	Panel Mount	1	100 ppm/°C	User Defined	Solder Lug	0.2497 in	6.34 mm	5 kOhms
