DC0001/08 Series

Catalog

THERM PAD 41.91X28.96MM W/ADH

Part	Shelf Life Start	Shelf Life	Outline [x]	Outline [y]	Thermal Conductivity	Type	Adhesive	Usage	Thickness	Thickness	Shape	Color	Thickness	Material	Backing, Carrier

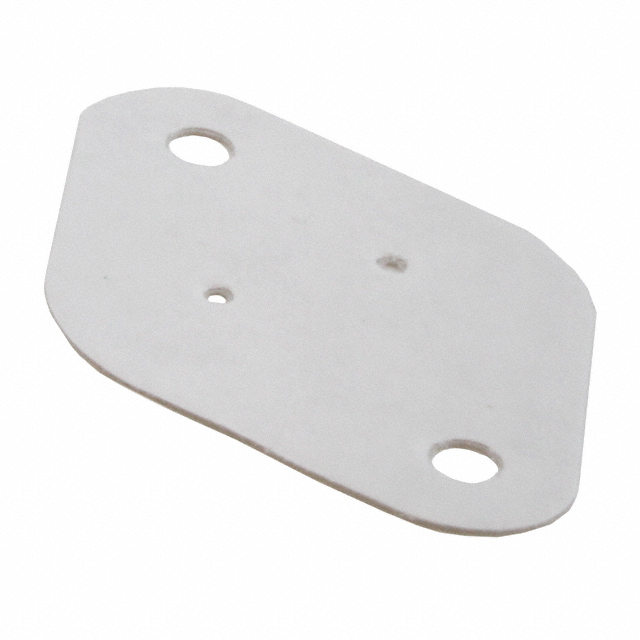

t-Global Technology DC0001/08-TG-A486G-0.3-2A	Date of Purchase	12 Months	41.91 mm	28.96 mm	6 W/m-K	Die-Cut Pad Sheet	Adhesive - Both Sides	TO-3	0.305 mm	0.012 in	Rhombus	Gray

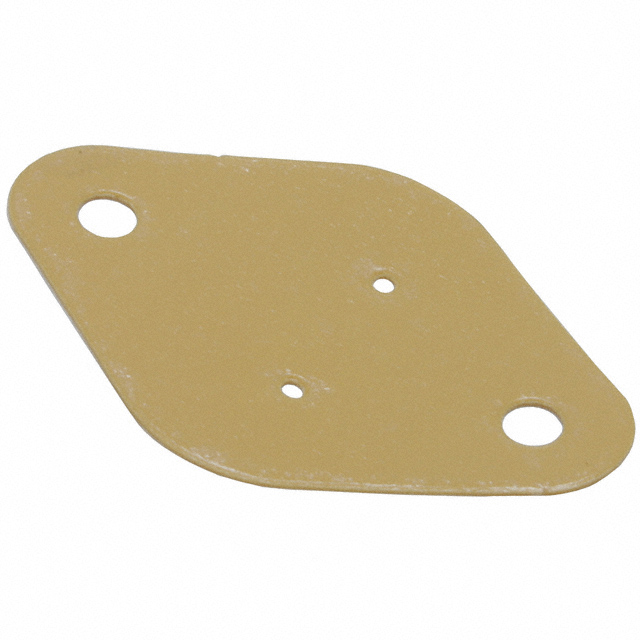

t-Global Technology DC0001/08-TG-A373F-0.25-2A		12 Months	41.91 mm	28.96 mm	1.4 W/m-K	Die-Cut Pad Sheet	Adhesive - Both Sides	TO-3	10 mils		Rhombus	Yellow	0.01 in

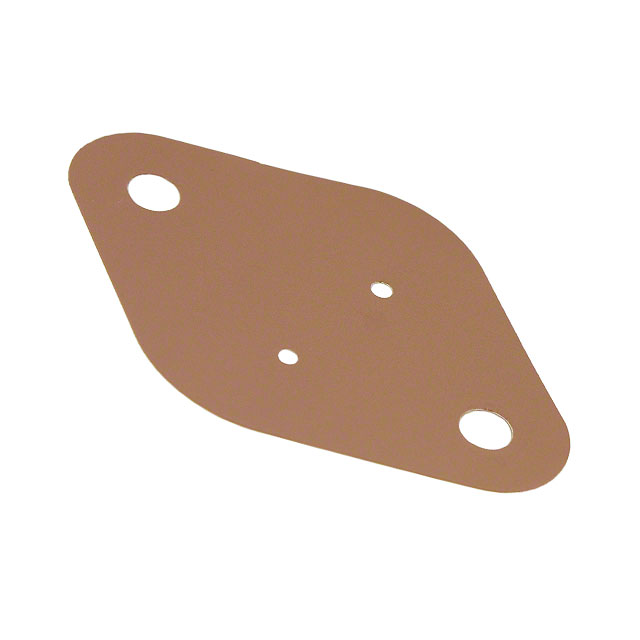

t-Global Technology DC0001/08-TG-A482K-0.1-0	Date of Purchase	24 Months	41.91 mm	28.96 mm	2.3 W/m-K	Die-Cut Pad Sheet		TO-3	0.1 mm	0.0039 in	Rhombus	Red		Silicone

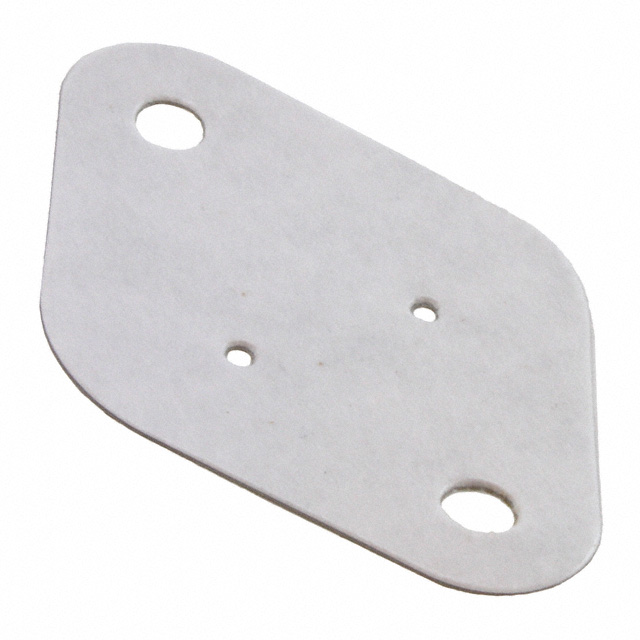

t-Global Technology DC0001/08-TI900-0.12-2A		24 Months	41.91 mm	28.96 mm	1.8 W/m-K	Die-Cut Pad Sheet	Adhesive - Both Sides	TO-3	5 mils	0.005 in	Rhombus	White		Silicone	Viscose
