G2RL-1-E Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPDT 16A 5V

Part	Approval Agency	Mounting Type	Release Time	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Switching Voltage	Coil Current	Termination Style	Coil Resistance	Must Operate Voltage	Coil Insulation	Relay Type	Contact Form	Must Release Voltage	Operate Time	Coil Voltage	Contact Material	Seal Rating	Contact Rating (Current)

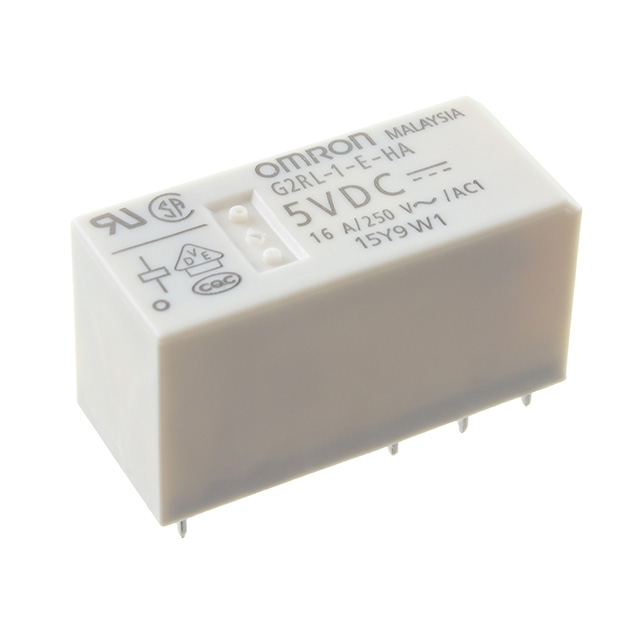

Omron Electronics Inc-EMC Div G2RL-1-E-HA DC5	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	80 mA	PC Pin	62.5 Ohms	3.5 VDC	Class F	General Purpose	SPDT (1 Form C)	0.5 VDC	15 ms	5 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC18	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	22.2 mA	PC Pin	811 Ohms	12.6 VDC	Class F	General Purpose	SPDT (1 Form C)	1.8 VDC	15 ms	18 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC24	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	16.7 mA	PC Pin	1440 Ohms	16.8 VDC	Class F	General Purpose	SPDT (1 Form C)	2.4 VDC	15 ms	24 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E DC5	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	80 mA	PC Pin	62.5 Ohms	3.5 VDC	Class F	General Purpose	SPDT (1 Form C)	0.5 VDC	15 ms	5 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC12	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	33.3 mA	PC Pin	360 Ohms	8.4 VDC	Class F	General Purpose	SPDT (1 Form C)	1.2 VDC	15 ms	12 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC48	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	9 mA	PC Pin	5.36 kOhms	33.6 VDC	Class F	General Purpose	SPDT (1 Form C)	4.8 VDC	15 ms	48 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E DC22	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	18 mA	PC Pin	1.22 kOhms	15.4 VDC	Class F	General Purpose	SPDT (1 Form C)	2.2 VDC	15 ms	22 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC5	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	80 mA	PC Pin	62.5 Ohms	3.5 VDC	Class F	General Purpose	SPDT (1 Form C)	0.5 VDC	15 ms	5 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E-CF DC9	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	44.4 mA	PC Pin	203 Ohms	6.3 VDC	Class F	General Purpose	SPDT (1 Form C)	0.9 VDC	15 ms	9 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
Omron Electronics Inc-EMC Div G2RL-1-E DC24	CQC CSA UR VDE	Through Hole	5 ms	Non Latching	85 °C	-40 °C	4800 W 7040 VA	300 VDC 440 VAC	16.7 mA	PC Pin	1440 Ohms	16.8 VDC	Class F	General Purpose	SPDT (1 Form C)	2.4 VDC	15 ms	24 VDC	Cadmium Free Silver Alloy	Sealed - Flux Protection	16 A
