282832 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 22POS VERT 5MM
| Part | Number of Positions | Features | Header Orientation | Contact Tail Length | Contact Tail Length | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage - UL | Pitch [x] | Pitch [x] | Number of Levels | Current - UL | Type | Contact Material | Contact Mating Finish | Material Flammability Rating | Positions Per Level | Mounting Type | Insulation Height | Insulation Height | Termination Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 22 positions | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 22 | Through Hole | 0.079 in | 2 mm | Solder | |
TE Connectivity Raychem Cable Protection | 9 | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 9 | Through Hole | 0.079 in | 2 mm | Solder | |
TE Connectivity Raychem Cable Protection | 21 | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 21 | Through Hole | 0.079 in | 2 mm | Solder | |
TE Connectivity Raychem Cable Protection | 13 | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 13 | Through Hole | 0.079 in | 2 mm | Solder | |
 TE Connectivity Raychem Cable Protection | 6 | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 6 | Through Hole | 0.079 in | 2 mm | Solder | |
TE Connectivity Raychem Cable Protection | 24 | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | Through Hole | 0.079 in | 2 mm | Solder | ||
TE Connectivity Raychem Cable Protection | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 25 | Through Hole | 0.079 in | 2 mm | Solder | ||
TE Connectivity Raychem Cable Protection | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 16 | Through Hole | 0.079 in | 2 mm | Solder | 16 | |
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||||

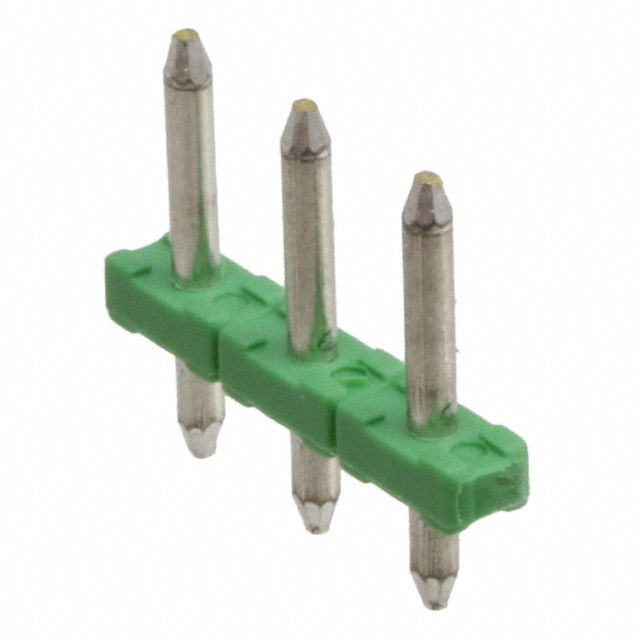

 TE Connectivity Raychem Cable Protection | Side Stacking | Vertical | 3.5 mm | 0.138 in | -40 °C | 110 °C | Green | 300 V | 5 mm | 0.197 in | 1 | 12 A | Header Male Pins Unshrouded | Brass | Tin | UL94 V-0 | 3 | Through Hole | 0.079 in | 2 mm | Solder |
