SMA Series
Manufacturer: Rosenberger
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS BULKHEAD JACK
| Part | Mounting Feature | Shield Termination | Connector Type | Frequency - Max [Max] | Mounting Type | Cable Group | Impedance | Center Contact Material | Fastening Type | Number of Ports | Housing Color | Contact Termination | Connector Style | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Features | Adapter Type | Convert From (Adapter End) | Center Gender | Conversion Type | Adapter Series | Style | Convert To (Adapter End) | Mating Cycles | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | Bulkhead - Front Side Nut | Crimp | Female Socket Jack | 12.4 GHz | Panel Mount | RG-316 | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | Solder | SMA | ||||||||||||||||||
 Rosenberger | Flange | Solder | Female Socket Jack | 12.4 GHz | Panel Mount | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | Solder | SMA | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 480 V | Extended Insulation | |||||||||||
 Rosenberger | 18 GHz | Free Hanging (In-Line) | 50 Ohms | Gold | Jack to Jack | Female Socket SMA Jack | Female to Female | Same Series | SMA to SMA | Straight | SMA Jack Female Socket | ||||||||||||||||||||

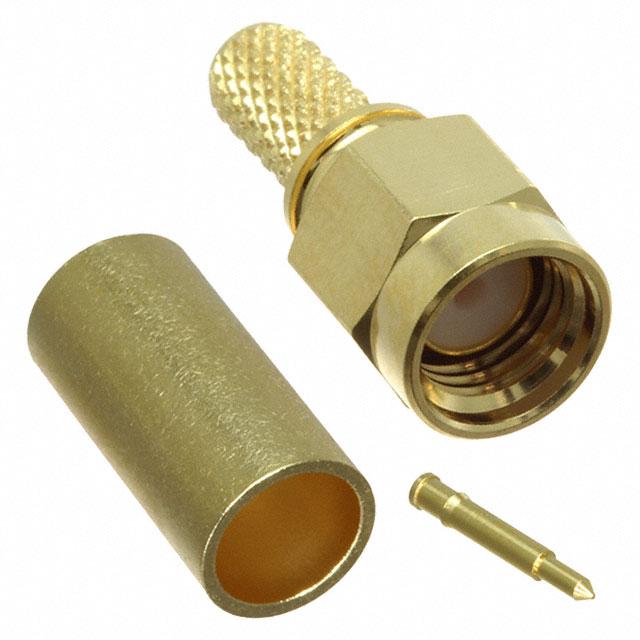

 Rosenberger | Crimp | Plug Male Pin | 12.4 GHz | Free Hanging (In-Line) | RG-142B | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | Solder | SMA | Gold | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper | -65 ░C | 165 °C | 480 V | 500 | 1 Connector 1 Contact 1 Ferrule | 223 400 | |||||||||
 Rosenberger | Solder | Plug Male Pin | 12.4 GHz | Free Hanging (In-Line) Right Angle | 50 Ohms | Brass | Threaded | 1 | Gold | Solder | SMA | ||||||||||||||||||||
 Rosenberger | Flange | Solder | Female Socket Jack | 18 GHz | Panel Mount | RG-405 (.085" Semi Rigid) | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | Solder | SMA | ||||||||||||||||||
 Rosenberger | Flange | Solder | Female Socket Jack | 18 GHz | Panel Mount | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | Solder Cup | SMA | Gold | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | 480 V | 500 | |||||||||||
 Rosenberger | Bulkhead - Front or Rear Side Nut | Solder | Female Socket Jack | 18 GHz | Panel Mount | 50 Ohms | Beryllium Copper | Threaded | 1 | Gold | SMA | Extended Insulation |
