M20-615 Series
Manufacturer: Harwin Inc.
Beta
⌘K
PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 40 CONTACTS, THROUGH HOLE MOUNT, M20 SERIES
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Number of Positions Loaded | Connector Type | Contact Finish | Connector Style | Number of Positions | Pitch | Pitch | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Applications | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Contact Material | Contact Finish - Mating | Contact Finish - Post | Fastening Type | Features | Insulation Color | Insulation Height | Insulation Height | Contact Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

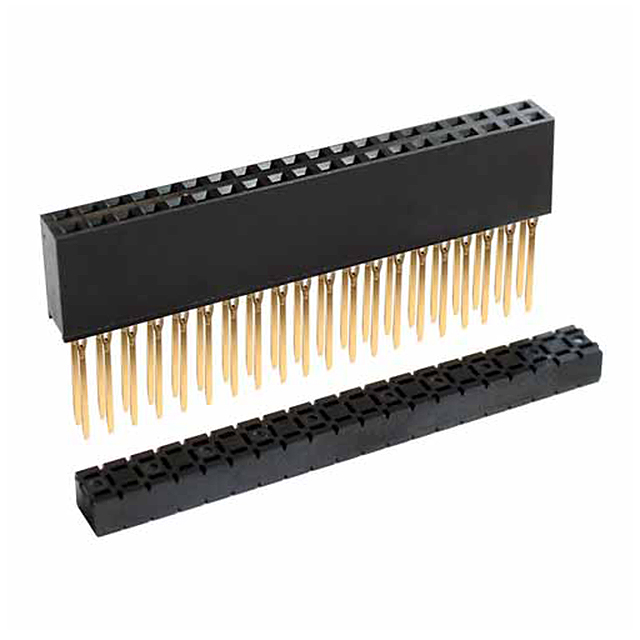

 Harwin Inc. | UL94 V-0 | -55 C | 105 ░C | 2 | All | Stackthrough Unkeyed + Organizer (PC/104) | Gold | PC/104 | 40 | 0.1 " | 2.54 mm | Through Hole | 0.25 Ám | 10 Áin | Press-Fit | Black | ||||||||||||||||||||||

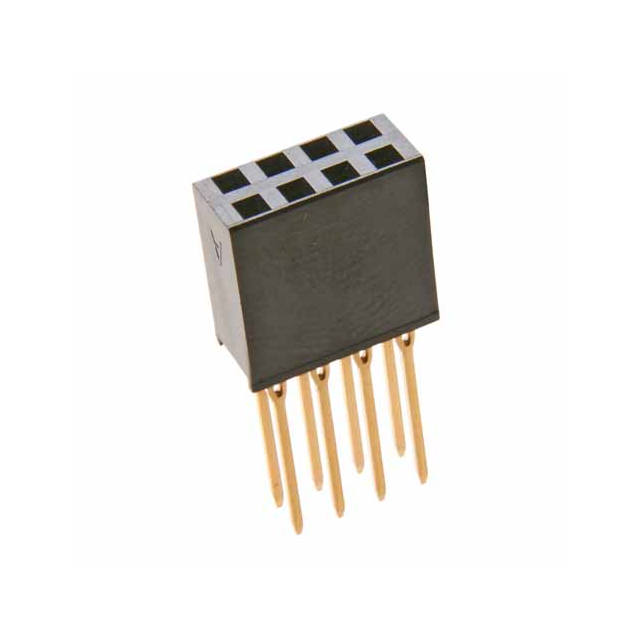

 Harwin Inc. | UL94 V-0 | -55 C | 105 ░C | 2 | All | Receptacle | 8 | Through Hole | Press-Fit | General Purpose | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 çm | Square | Phosphor Bronze | Gold | Gold | Push-Pull | Spacer | Black | 11.1 mm | 0.437 in | Forked | 0.1 " | 2.54 mm | 0.25 µm | 10 µin | 0.1 in | 2.54 mm | 12.09 mm | 0.476 in |
