LM2698 Series

Catalog

IC REG BST SEPIC ADJ 8VSSOP

Part	Mounting Type	Voltage - Output (Min/Fixed)	Output Type	Package / Case	Package / Case [custom]	Package / Case	Output Configuration	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Function	Topology	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Output	Regulator Topology	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose
Texas Instruments LM2698MMX-ADJ	Surface Mount	2.2 V	Adjustable	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive or Negative	1.35 A	-40 °C	125 ¯C	1.25 MHz 600 kHz	Step-Up Step-Up/Step-Down	Boost SEPIC	1	2.2 V	12 V	17.5 V
Texas Instruments LM2698MM-ADJ	Surface Mount	2.2 V	Adjustable	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive or Negative	1.35 A	-40 °C	125 ¯C	1.25 MHz 600 kHz	Step-Up Step-Up/Step-Down	Boost SEPIC	1	2.2 V	12 V	17.5 V

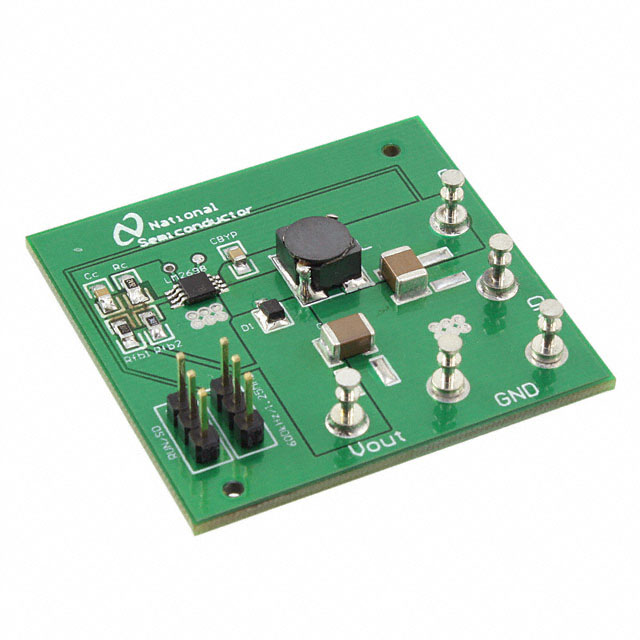

Texas Instruments LM2698EVAL								400 mA										Board(s)	Non-Isolated	1	LM2698	12 V	Boost	Fully Populated	4.5 V	9 VDC	DC/DC Step Up
Texas Instruments LM2698MMX-ADJ/NOPB	Surface Mount	2.2 V	Adjustable	8-MSOP 8-TSSOP	0.118 in	3 mm	Positive or Negative	1.35 A	-40 °C	125 ¯C	1.25 MHz 600 kHz	Step-Up Step-Up/Step-Down	Boost SEPIC	1	2.2 V	12 V	17.5 V
