77238 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

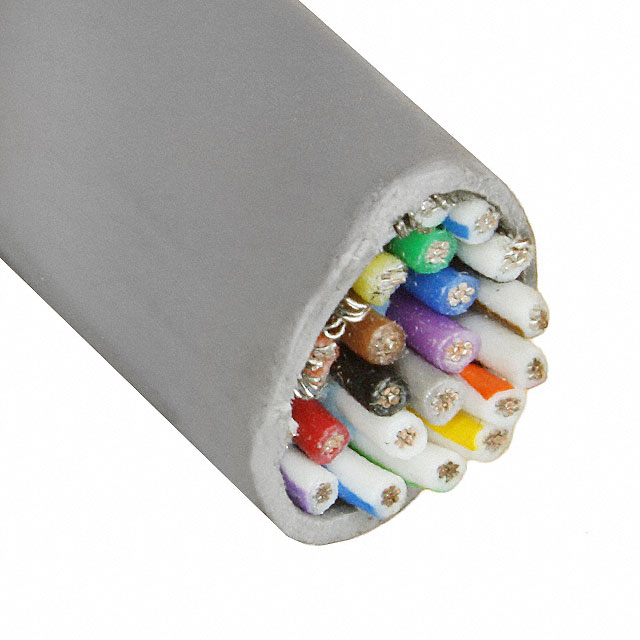

CABLE 25COND 14AWG SHLD
| Part | Shield Coverage | Shield Material | Features | Conductor Material | Jacket Color | Shield Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Length | Length | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Number of Conductors [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum Copper Tinned | Biological Compatibility | Copper Tinned | Slate | Braid Foil | Polyphenylene Ether Modified (mPPE) | 17.22 mm | 0.678 in | -50 °C | 105 ░C | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | 600 V | 14.5 AWG | 41 | 30 | ISO 10993 | 25 | 0.053 " | 1.346 mm | Multi-Conductor |
