PS-A Series

Catalog

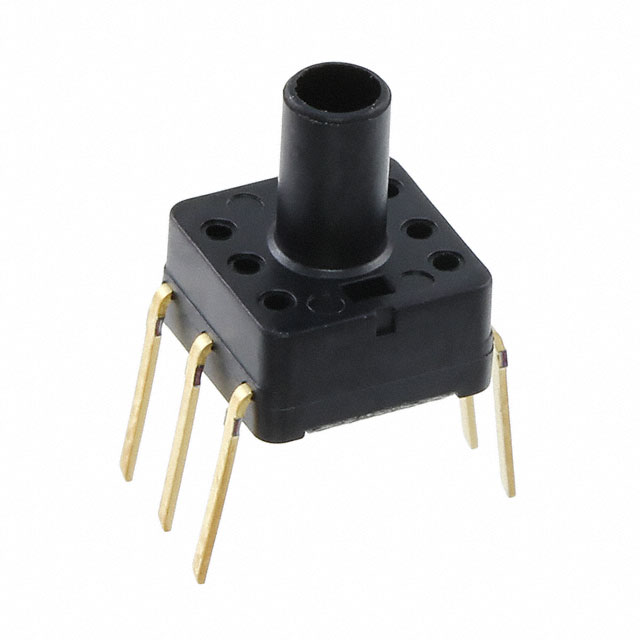

BOARD MOUNT PRESSURE SENSORS 100 KPA 3MM PRESSURE SENSOR DIP

Part	Package / Case	Output Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Output [Max]	Operating Pressure	Operating Pressure	Accuracy	Termination Style	Port Size	Port Size	Port Size	Mounting Type	Pressure Type	Port Style	Maximum Pressure	Maximum Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]
Panasonic Electronic Components ADP5140	6-DIP Module	Analog Voltage	Board Mount	-10 °C	60 °C	Amplified Output Temperature Compensated	4.5 V	1 bar	14.5 PSI	1.25 %	PC Pin	3 mm	0.12 in	Male Tube	Through Hole	Vented Gauge	Barbless	29.01 PSI	200 kPa
Panasonic Electronic Components ADP5100	6-DIP Module	Analog Voltage	Board Mount	-10 °C	60 °C	Amplified Output Temperature Compensated	4.5 V	100 kPa	14.5 PSI	1.25 %	PC Pin	3 mm	0.12 in	Male Tube	Through Hole	Compound	Barbless	29.01 PSI	200 kPa
Panasonic Electronic Components ADP5261	6-SMD Module	Wheatstone Bridge	Board Mount	-10 °C	60 °C	Amplified Output Temperature Compensated	4.5 V	5 bar	72.52 PSI	1.5 %	Gull Wing	3 mm	0.12 in	Male Tube	Surface Mount	Vented Gauge	Barbless		1000 kPa	145.04 PSI
Panasonic Electronic Components ADP5111	6-DIP Module	Analog Voltage	Board Mount	-10 °C	60 °C	Amplified Output Temperature Compensated	4.5 V	-1 bar	-14.5 PSI	1.25 %	PC Pin	3 mm	0.12 in	Male Tube	Through Hole	Vacuum	Barbless			-29.01 PSI	-200 kPa
Panasonic Electronic Components ADP5200	6-SMD Module	Analog Voltage	Board Mount	-10 °C	60 °C	Amplified Output Temperature Compensated	4.5 V	100 kPa	14.5 PSI	1.25 %	Gull Wing	3 mm	0.12 in	Male Tube	Surface Mount	Compound	Barbless	29.01 PSI	200 kPa
