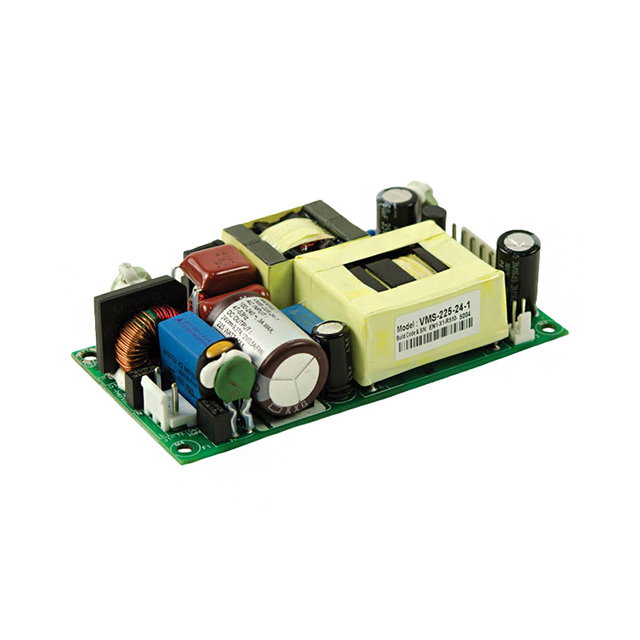

VMS-225 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 15V 120W
| Part | Current - Output 1 | Standard Number | Approval Agency | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Features | Efficiency | Power (Watts) | Type | Number of Outputs | Mounting Type | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 8 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 15 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 92 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 2.5 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 48 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output Standby Output Universal Input | 94 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 4 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 30 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 93 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 2.5 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 48 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 94 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 10 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 12 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output Standby Output Universal Input | 92 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 5 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 24 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output Standby Output Universal Input | 93 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 10 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 12 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 92 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
CUI Inc. | 2.07 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 94 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical | |
CUI Inc. | 2.07 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 94 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical | |
CUI Inc. | 8 A | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | CB Scheme EN FCC IEC TUV UL | 15 V | 1 in | 50.8 mm | 4 " | 101.6 mm | 2 in | 25.4 mm | 4.2 kV | 80 VAC | 264 VAC | Adjustable Output PFC Standby Output Universal Input | 92 % | 120 W 225 W | Open Frame | 1 | Chassis Mount | Medical |
