68764 Series

Catalog

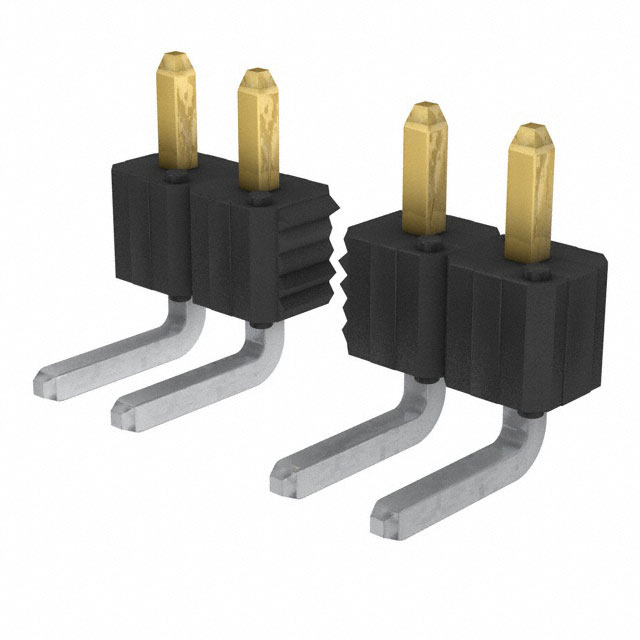

CONN HEADER R/A 14POS 2.54MM

Part	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Color	Connector Type	Shrouding	Number of Positions	Contact Shape	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height [z]	Insulation Height [z]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Mounting Type	Material Flammability Rating	Contact Finish - Post	Number of Positions
Amphenol ICC (FCI) 68764-114HLF	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	14	Square	1	125 °C	-65 ░C	30 Áin	0.76 Ám	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0
Amphenol ICC (FCI) 68764-123HLF	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	23	Square	1	125 °C	-65 ░C	30 Áin	0.76 Ám	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0
Amphenol ICC (FCI) 68764-406HLF		Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	6	Square	1	125 °C	-65 ░C	100 çin	2.54 çm	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin
Amphenol ICC (FCI) 68764-432HLF		Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded		Square	1	125 °C	-65 ░C	100 çin	2.54 çm	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin
Amphenol ICC (FCI) 68764-426HLF		Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	26	Square	1	125 °C	-65 ░C	100 çin	2.54 çm	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin
Amphenol ICC (FCI) 68764-109HLF	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	9	Square	1	125 °C	-65 ░C	30 Áin	0.76 Ám	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0
Amphenol ICC (FCI) 68764-118HLF	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	18	Square	1	125 °C	-65 ░C	30 Áin	0.76 Ám	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0
Amphenol ICC (FCI) 68764-416HLF		Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded		Square	1	125 °C	-65 ░C	100 çin	2.54 çm	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	16
Amphenol ICC (FCI) 68764-128HLF	Gold or Gold GXT™	Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	28	Square	1	125 °C	-65 ░C	30 Áin	0.76 Ám	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0
Amphenol ICC (FCI) 68764-411HLF		Push-Pull	0.1 in	2.54 mm	3 A	Black	Header	Unshrouded	11	Square	1	125 °C	-65 ░C	100 çin	2.54 çm	All	0.1 in	2.54 mm	Male Pin	0.095 in	2.41 mm	Solder	0.12 in	3.05 mm	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin
