TD1250 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCHES
| Part | Operating Force | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Electrical Life | Switch Function | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Mechanical Life | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 160 gf | Lever Straight | Panel Mount | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 150000 Cycles | Off-Mom | Solder Lug | 16 V | 50 mA | 50000 Cycles | SPST-NO |
 E-Switch | 160 gf | Lever Straight | Through Hole | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 150000 Cycles | Off-Mom | PC Pin | 16 V | 50 mA | 50000 Cycles | SPST-NO |
 E-Switch | 160 gf | Lever Simulated Roller | Panel Mount | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 150000 Cycles | Off-Mom | Solder Lug | 16 V | 50 mA | 50000 Cycles | SPST-NO |

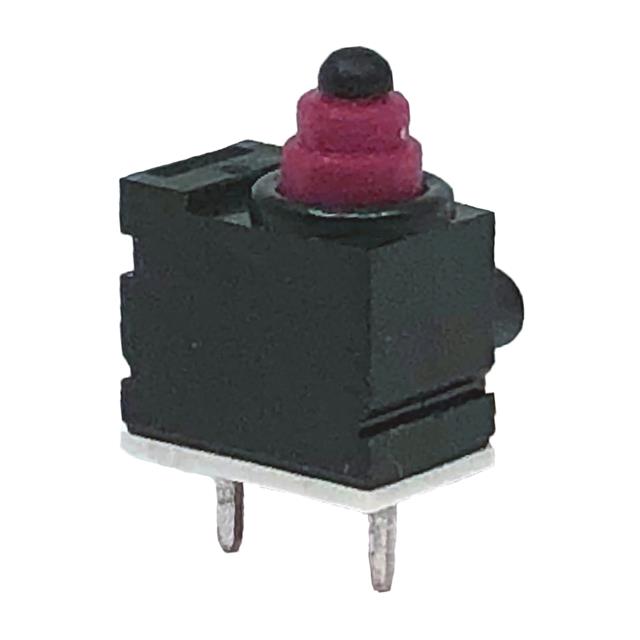

 E-Switch | 160 gf | Round (Pin Plunger) | Through Hole | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 150000 Cycles | Off-Mom | PC Pin | 16 V | 50 mA | 500000 Cycles | SPST-NO |
 E-Switch | 160 gf | Lever Simulated Roller | Through Hole | 85 °C | -40 C | IP67 - Dust Tight Waterproof | 150000 Cycles | Off-Mom | PC Pin | 16 V | 50 mA | 50000 Cycles | SPST-NO |
