2823391 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

5P,2MM,SHRD HDR,SRRT,2.8,0.38AU,

Part	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Contact Material	Number of Positions Loaded	Insulation Color	Contact Shape	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Mounting Type	Voltage Rating	Fastening Type	Termination	Shrouding	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions

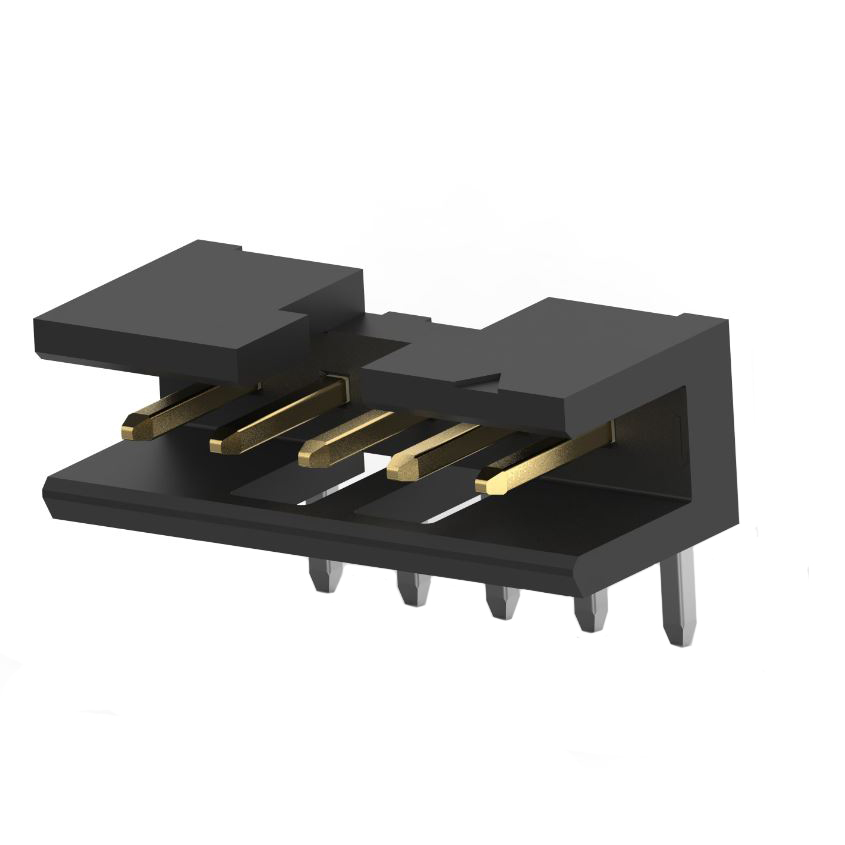

TE Connectivity Raychem Cable Protection 2823391-5	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm

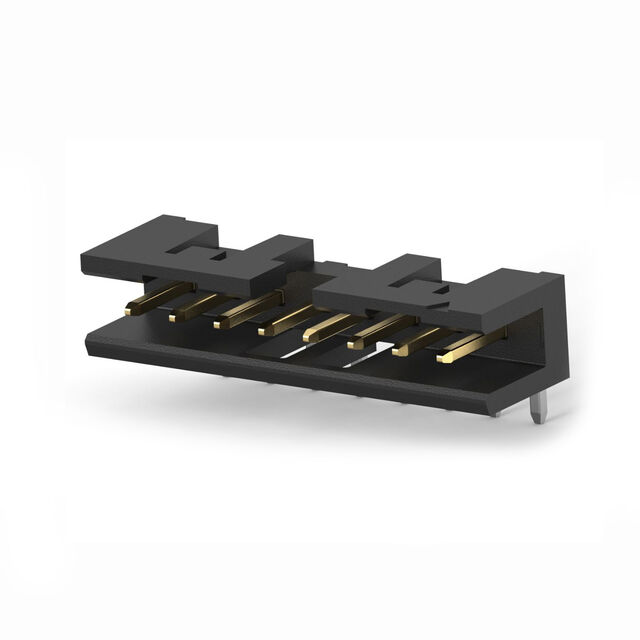

TE Connectivity Raychem Cable Protection 2823391-8	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm	8
TE Connectivity Raychem Cable Protection 1-2823391-2	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm	12
TE Connectivity Raychem Cable Protection 2823391-9	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm	9

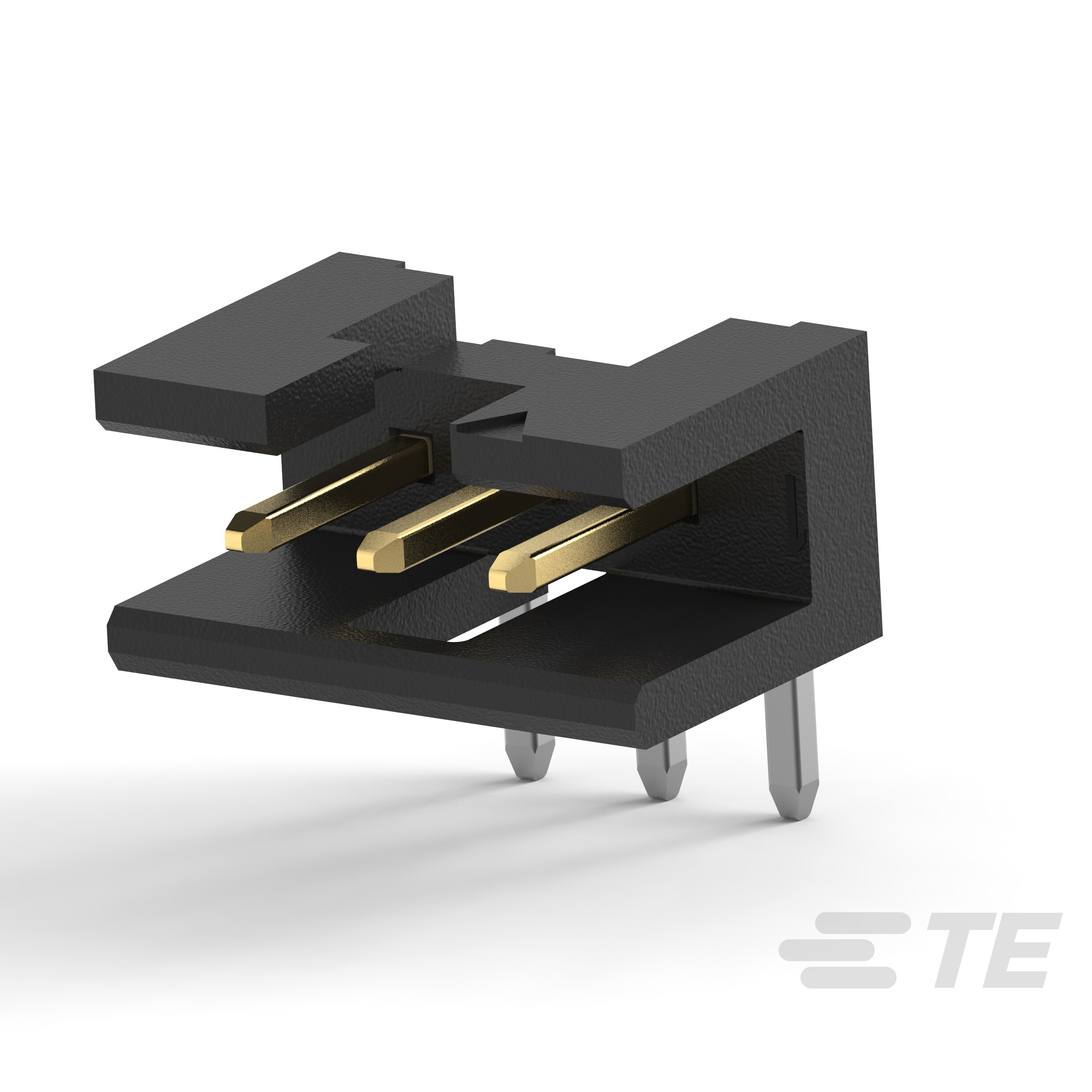

TE Connectivity Raychem Cable Protection 2823391-3	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm

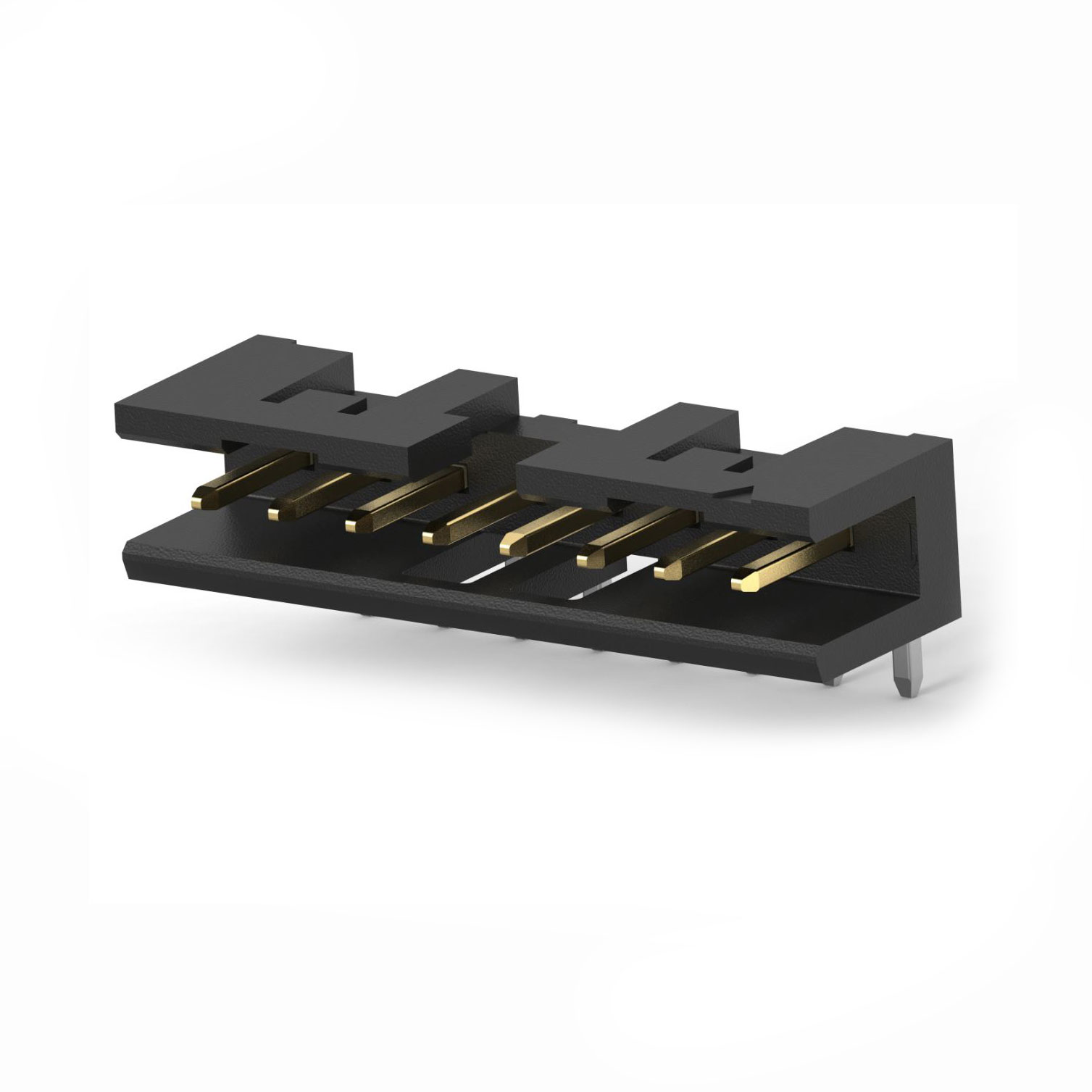

TE Connectivity Raychem Cable Protection 1-2823391-0	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm	10

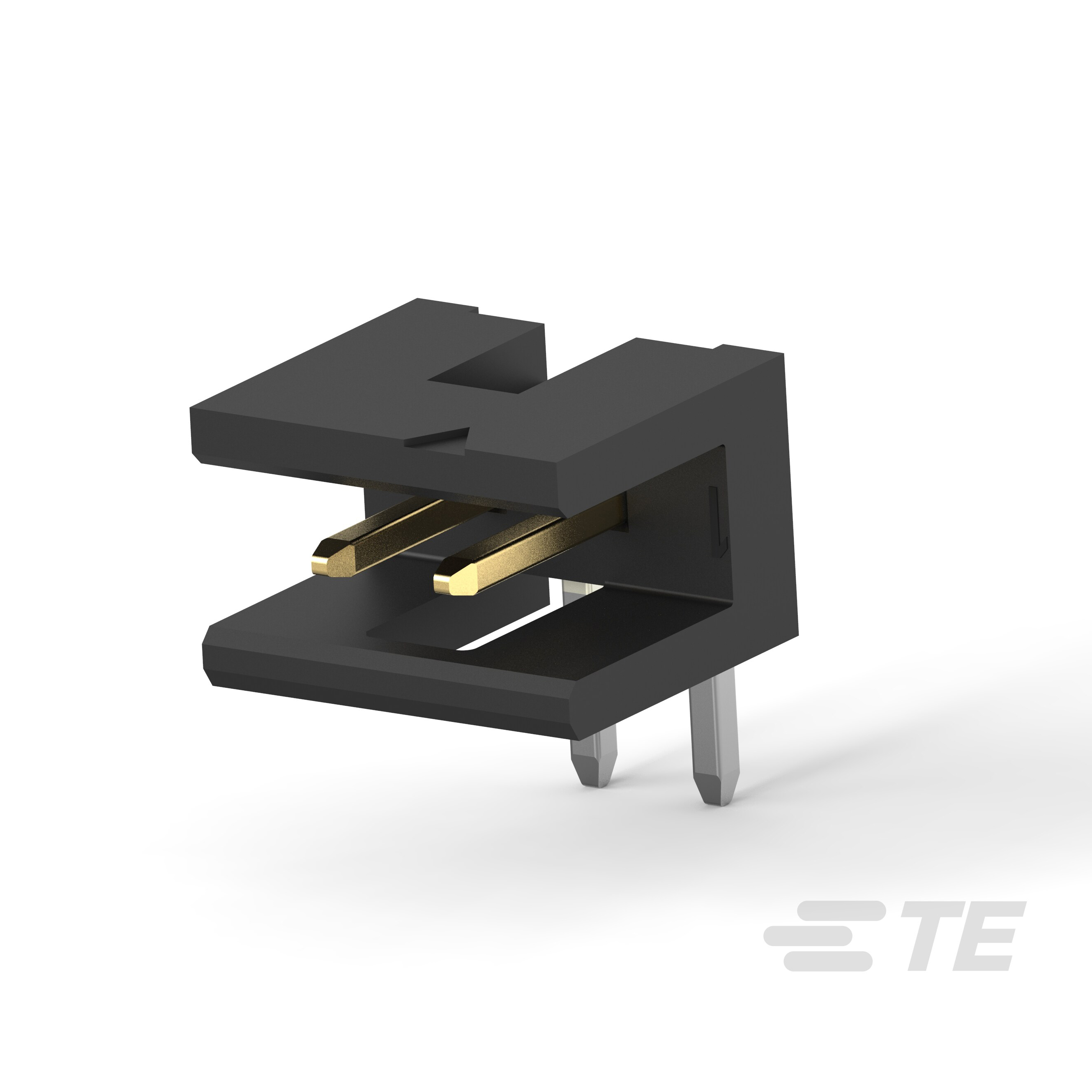

TE Connectivity Raychem Cable Protection 2823391-2	0.157 in	4 mm	157.5 Áin	4 Ám	UL94 V-0	Tin	Phosphor Bronze	All	Black	Square	1	0.079 in	2 mm	125 °C	-40 °C	Thermoplastic	Through Hole Right Angle	125 VAC	Detent Lock	Solder	Shrouded - 2 Wall	Male Pin	15 µin	0.38 µm	Header	2 A	4 mm	0.157 in	Gold	0.11 in	2.8 mm	2
