103783 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 28POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Connector Type	Contact Type	Contact Shape	Style	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Material	Number of Positions Loaded	Contact Finish - Mating	Fastening Type	Current Rating (Amps)	Insulation Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Mounting Type	Termination	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
TE Connectivity AMP Connectors 4-103783-0-14	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	28	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-35	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	70	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-07	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	14	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-30	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	60	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-15	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	30	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 103783-1	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable			2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	2	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm

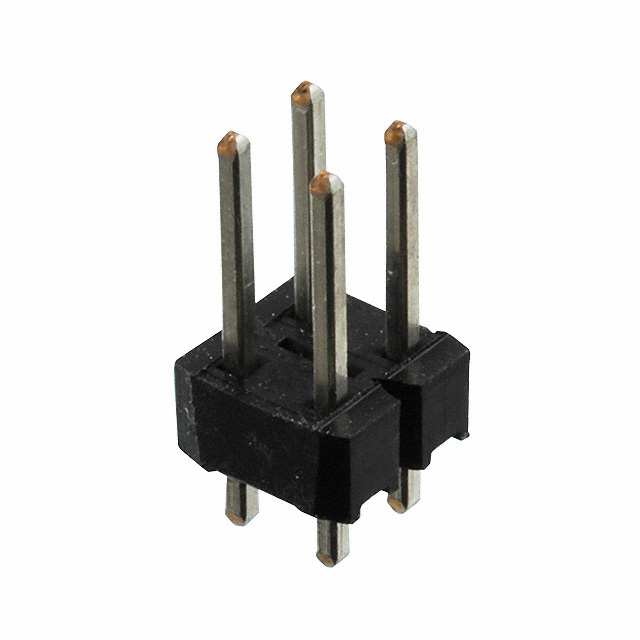

TE Connectivity AMP Connectors 4-103783-0-02	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	4	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-05	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	10	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-06	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	12	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
TE Connectivity AMP Connectors 4-103783-0-36	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	Black	Header Breakaway	Male Pin	Square	Board to Board Cable	0.1 "	2.54 mm	2	Copper Alloy	All	Gold	Push-Pull	3 A	Thermoplastic	UL94 V-0	0.76 Ám	30 Áin	72	0.09 in	2.29 mm	Through Hole	Solder	Unshrouded	105 ░C	-65 ░C	Tin-Lead	2.29 mm	0.09 in	0.41 in	10.41 mm
