AON746 Series

Catalog

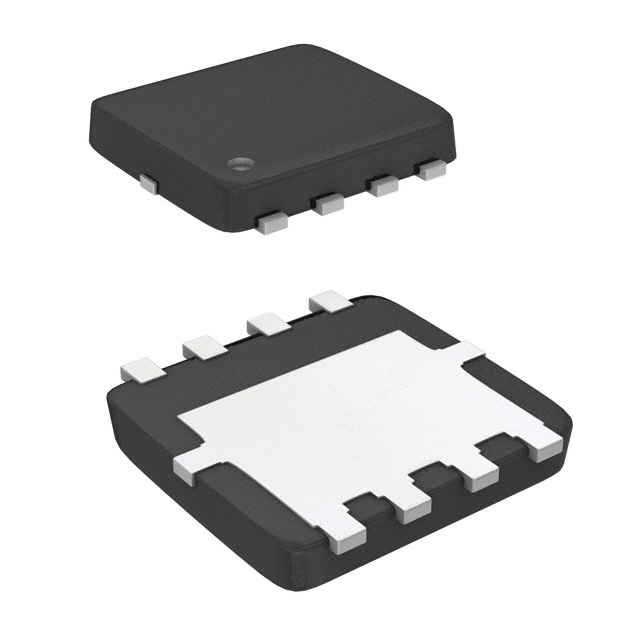

MOSFET N-CH 300V 1.2A/4A 8DFN

Part	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	Technology	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Mounting Type	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	FET Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Current - Continuous Drain (Id) @ 25°C
Alpha & Omega Semiconductor Inc. AON7460	1.2 A 4 A	4.5 V	MOSFET (Metal Oxide)	3.1 W 33 W	380 pF	-50 °C	150 °C	10 V	8-PowerVDFN	Surface Mount	8-DFN-EP (3x3)	8.2 nC	30 V	300 V	830 mOhm	N-Channel
Alpha & Omega Semiconductor Inc. AON7466		2.5 V	MOSFET (Metal Oxide)	3.1 W 25 W		-50 °C	150 °C	4.5 V 10 V	8-PowerVDFN	Surface Mount	8-DFN-EP (3x3)	30 nC	25 V	30 V	7.5 mOhm	N-Channel	1150 pF	30 A	15 A
Alpha & Omega Semiconductor Inc. AON7462	2.5 A 900 mA	4.5 V	MOSFET (Metal Oxide)	3.1 W 25 W		-50 °C	150 °C	10 V	8-PowerVDFN	Surface Mount	8-DFN-EP (3x3)	5.6 nC	30 V	300 V	1.5 Ohm	N-Channel	240 pF
Alpha & Omega Semiconductor Inc. AON7468
