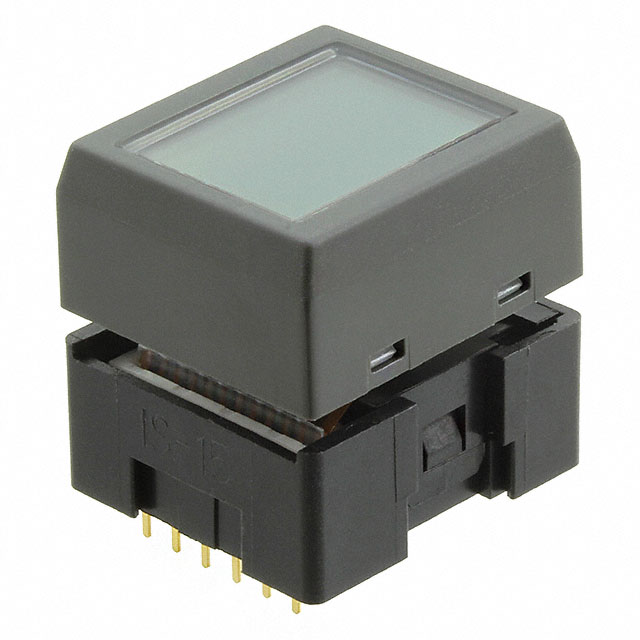

IS15BAFP Series
Manufacturer: NKK Switches
Beta
⌘K
PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, SMARTSWITCH IS SERIES, SPST-NO, THROUGH HOLE, 100 MA, 12 V
| Part | Travel Range [Max] | LED Forward Voltage | LED Forward Current | Style | Operating Force | Face Size [x] | Face Size [y] | Operating Temperature [Min] | Operating Temperature [Max] | Supply Voltage [Max] | Supply Voltage [Min] | Display Mode | Termination Style | Circuit | Mounting Type | Viewing Area [x] | Viewing Area [y] | Switch Function | Contact Rating @ Voltage | LED Color | Type | Pixel Format [y] | Pixel Format [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1.8 mm | 2.2 VDC 3.3 VDC | 15 mA 15 | Standard | 173 gf | 23.13 mm | 20.59 mm | -20 ░C | 60 °C | 5.5 V | 3 V | Black and White FSTN Positive | PC Pin | SPST-NO | Through Hole | 17 mm | 13 mm | Off-Mom | 0.1 A 12 VDC | Green Red | LCD Pushbutton | 24 | 36 |
