M22-533 Series
Manufacturer: Harwin Inc.
Beta
⌘K
5 POS. MALE SIL HORIZONTAL SMT CONN. (T+R) ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish - Mating | Current Rating (Amps) | Mounting Type | Connector Type | Contact Finish - Post | Contact Shape | Insulation Material | Contact Finish Thickness - Mating | Contact Material | Insulation Color | Style | Number of Positions | Number of Rows | Contact Length - Mating | Contact Length - Mating [x] | Fastening Type | Material Flammability Rating | Shrouding | Contact Type | Insulation Height [z] | Insulation Height [z] | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Flash | Gold | 2 A | Right Angle Surface Mount | Header Cuttable | Gold | Square | Nylon 9T Polyamide (PA9T) | Flash | Brass | Black | Board to Board Cable | 5 | 1 | 4.2 mm | 0.165 in | Push-Pull | UL94 V-0 | Unshrouded | Male Pin | 2 mm | 0.079 in | All | 0.079 " | 2 mm | -40 C | 105 ░C | Solder |

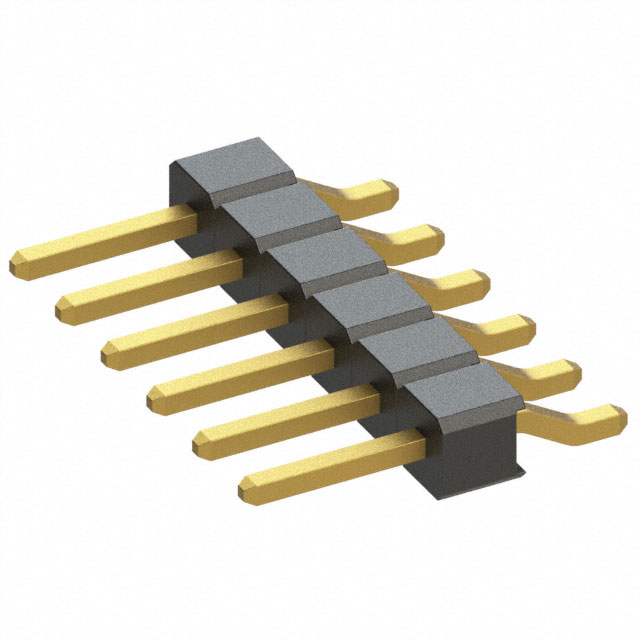

 Harwin Inc. | Gold | 2 A | Right Angle Surface Mount | Header Cuttable | Square | Nylon 6T Polyamide (PA6T) | Flash | Brass | Black | Board to Board Cable | 6 | 1 | 4.2 mm | 0.165 in | Push-Pull | UL94 V-0 | Unshrouded | Male Pin | 2 mm | 0.079 in | All | 0.079 " | 2 mm | -40 C | 105 ░C | Solder | ||

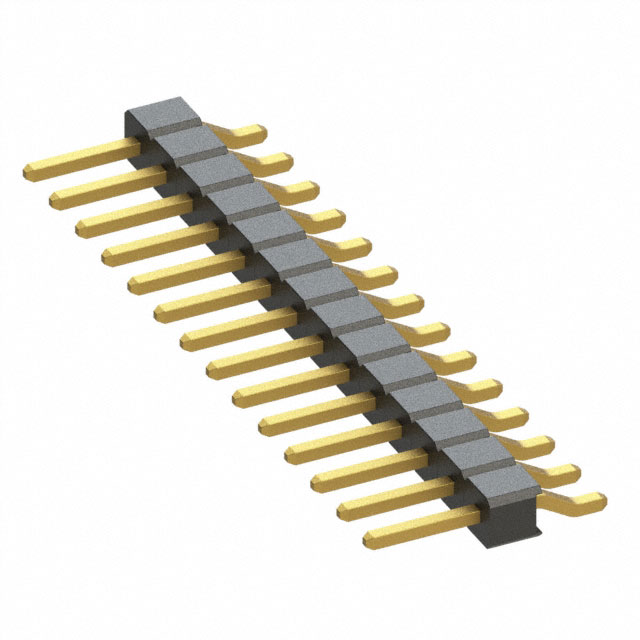

 Harwin Inc. | Gold | 2 A | Right Angle Surface Mount | Header Cuttable | Square | Nylon 6T Polyamide (PA6T) | Flash | Brass | Black | Board to Board Cable | 14 | 1 | 4.2 mm | 0.165 in | Push-Pull | UL94 V-0 | Unshrouded | Male Pin | 2 mm | 0.079 in | All | 0.079 " | 2 mm | -40 C | 105 ░C | Solder |
