ED365 Series

Catalog

TERM BLK 10P SIDE ENT 7.5MM PCB

Part	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Housing Material	Contact Material - Plating	Clamp Material - Plating	Mating Orientation	Number of Levels	Mounting Type	Wire Termination	Voltage	Current	Pitch	Pitch	Wire Gauge [Max]	Wire Gauge [Min]	Color	Positions Per Level	Positions Per Level [custom]

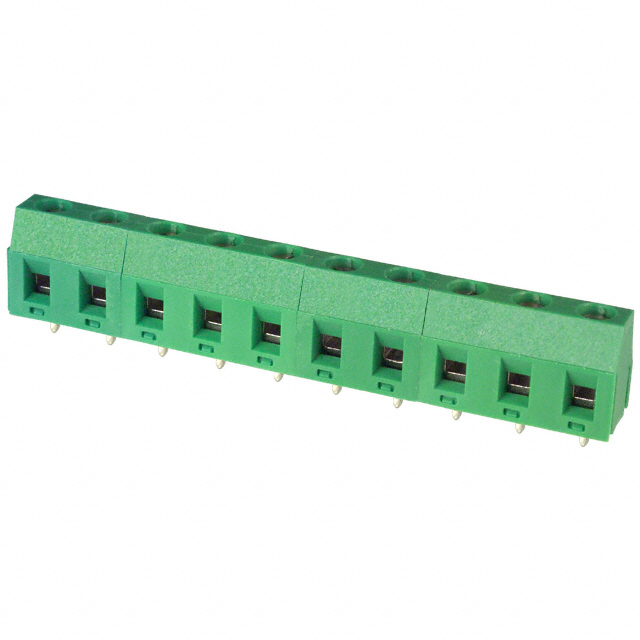

On Shore Technology Inc. ED365/10	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	10

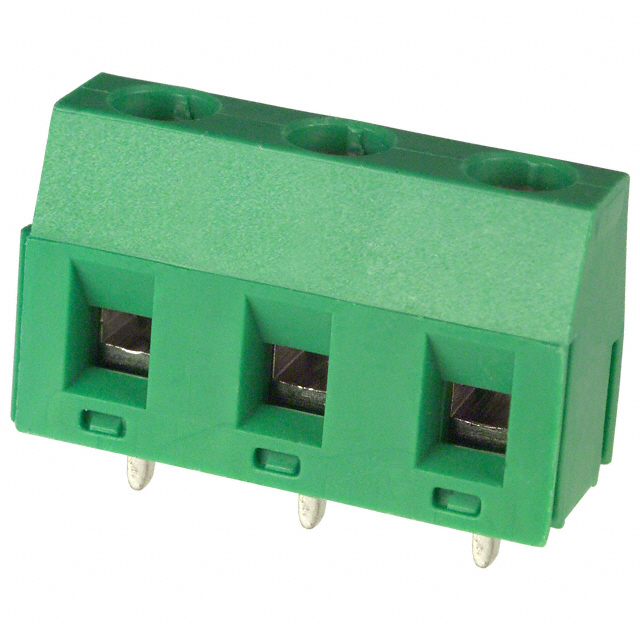

On Shore Technology Inc. ED365/3	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	3

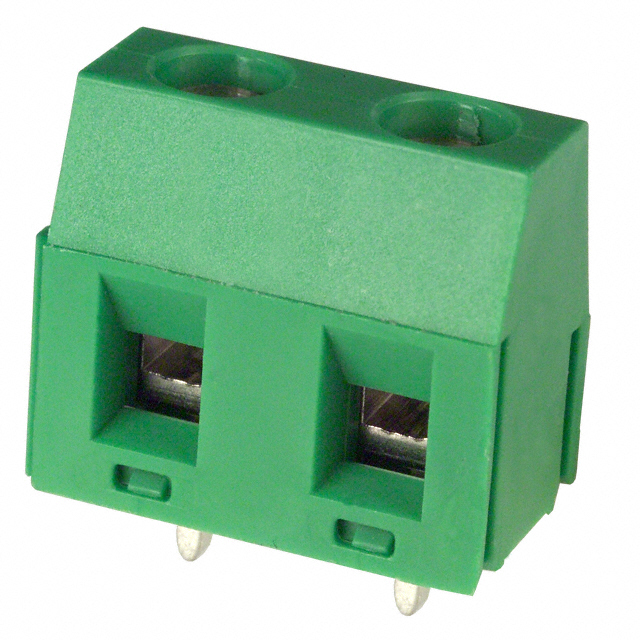

On Shore Technology Inc. ED365/2	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	2

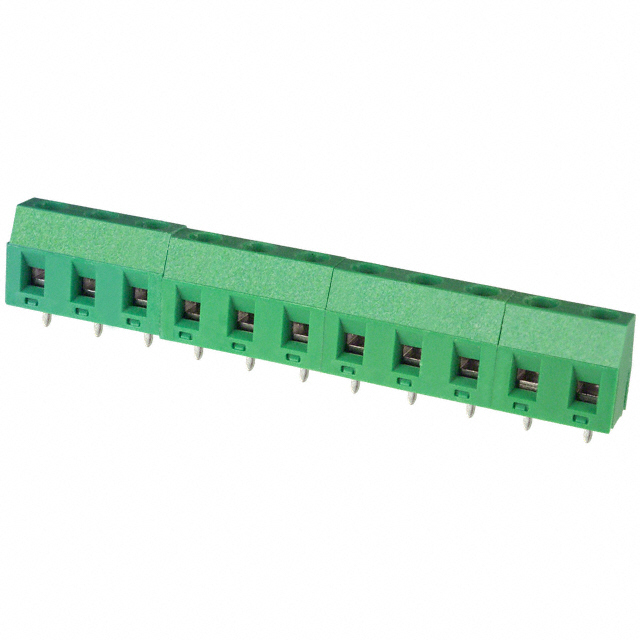

On Shore Technology Inc. ED365/11	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	11

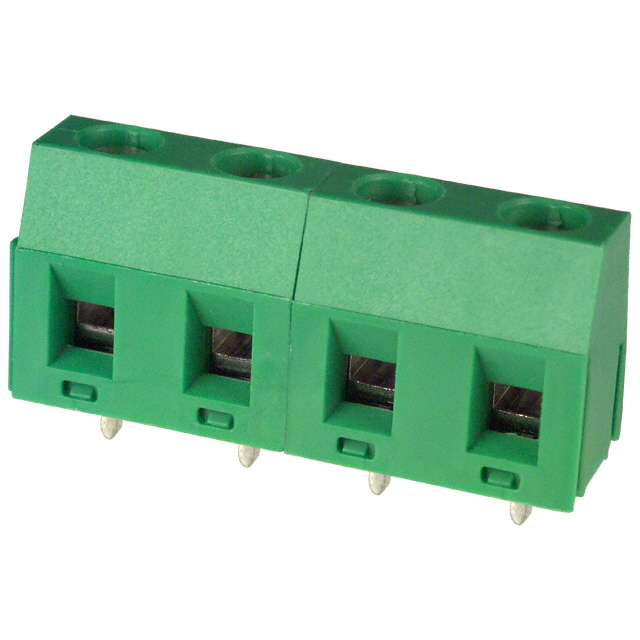

On Shore Technology Inc. ED365/4	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	4

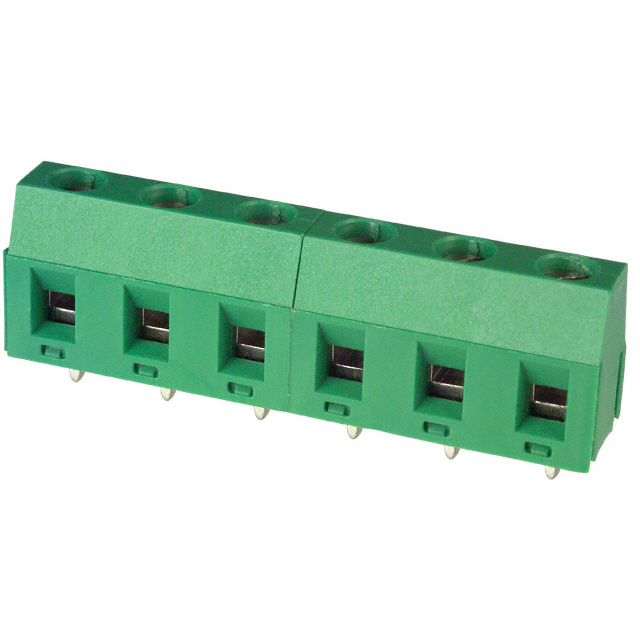

On Shore Technology Inc. ED365/6	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	6

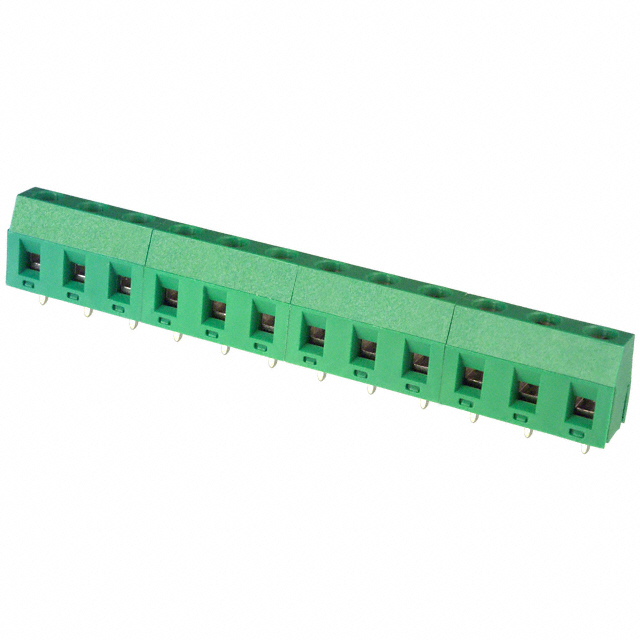

On Shore Technology Inc. ED365/12	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	12

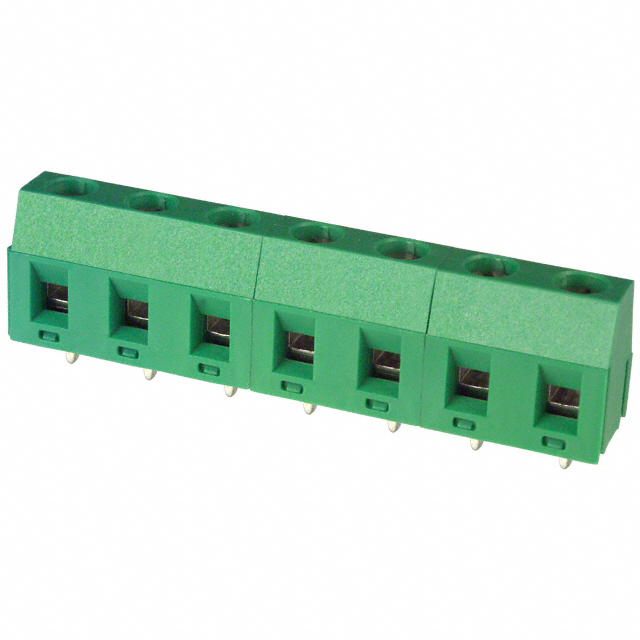

On Shore Technology Inc. ED365/7	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green		7

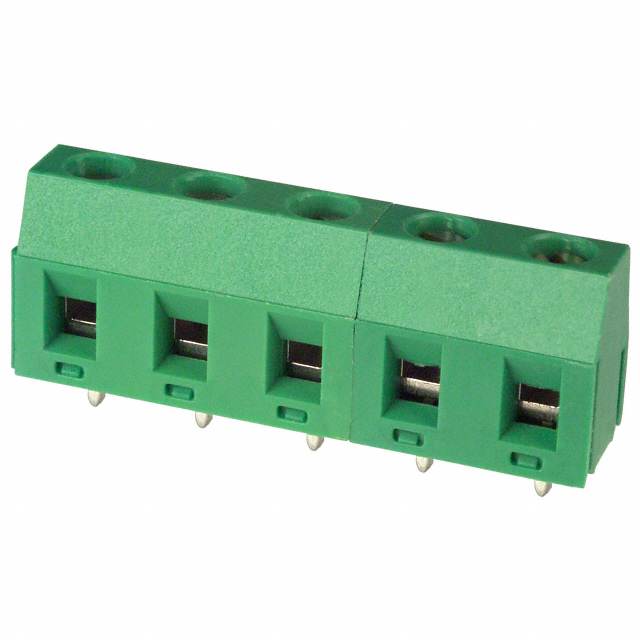

On Shore Technology Inc. ED365/5	M3	-30 ░C	105 ░C	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Brass	Copper	Horizontal with Board	1	Through Hole	Screw - Rising Cage Clamp	300 VDC	16 A	0.295 in	7.5 mm	22 AWG	12 AWG	Green	5
