396-049 Series
Manufacturer: EDAC Inc.
Beta
⌘K

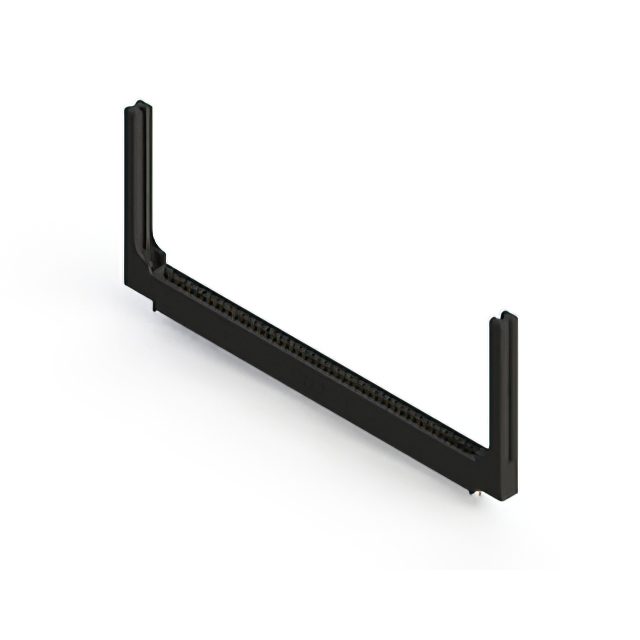

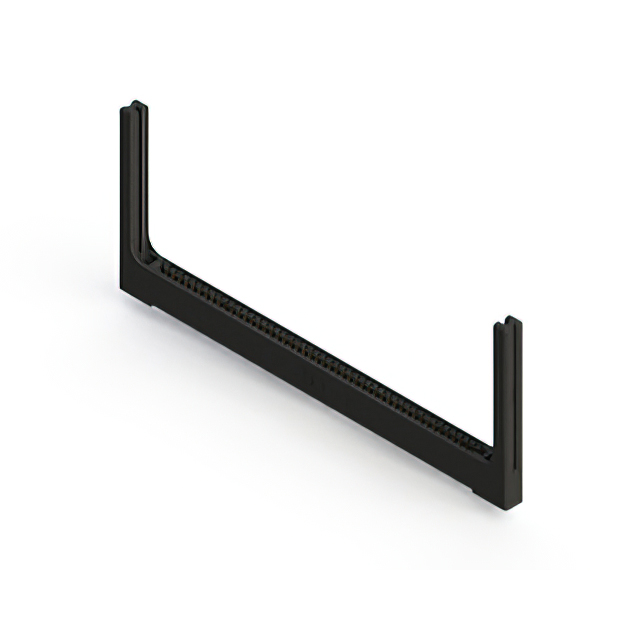

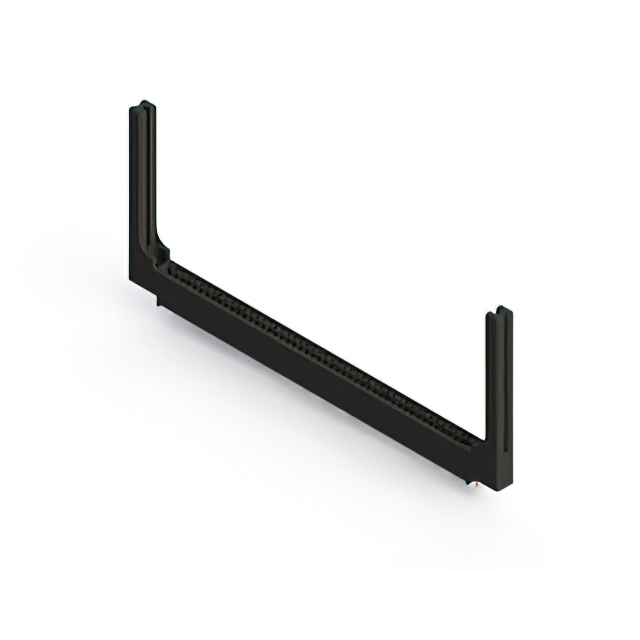

CONN EDGE SGL FMALE 49POS 0.125
| Part | Termination Rows | Material - Insulation | Number of Rows | Color | Gender | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Card Type | Read Out | Mounting Type | Number of Positions | Flange Feature | Contact Material | Contact Finish | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Right Angle Through Hole | 49 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Solder Wire Wrap | -40 C | 105 ░C | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Right Angle Through Hole | 49 | M3 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Solder Wire Wrap | -40 C | 105 ░C | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Wire Wrap | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | Wire Wrap | -40 C | 105 ░C | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Right Angle Through Hole | 49 | Floating Bobbin Flush Mount | Copper Alloy | Gold | Solder Wire Wrap | -40 C | 105 ░C | 0.116 " | 2.95 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | Copper Alloy | Gold | Solder | -40 C | 105 ░C | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | Copper Alloy | Gold | Solder | -40 C | 105 ░C | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | M3 Threaded Insert Top Mount Opening | Copper Alloy | Gold | Solder | -40 C | 105 ░C | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | Copper Alloy | Gold | Solder | -40 C | 105 ░C | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 1 | Black | Female | 49 | 0.25 Ám | 10 Áin | Cantilever | 3.18 mm | 0.125 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Single | Through Hole | 49 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Gold | Solder | -40 C | 105 ░C |
