A11CSP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 30A 12V
| Part | Contact Material | Coil Power | Coil Resistance | Coil Current | Features | Contact Form | Contact Rating (Current) | Must Release Voltage | Must Operate Voltage | Release Time | Coil Type | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Operate Time | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

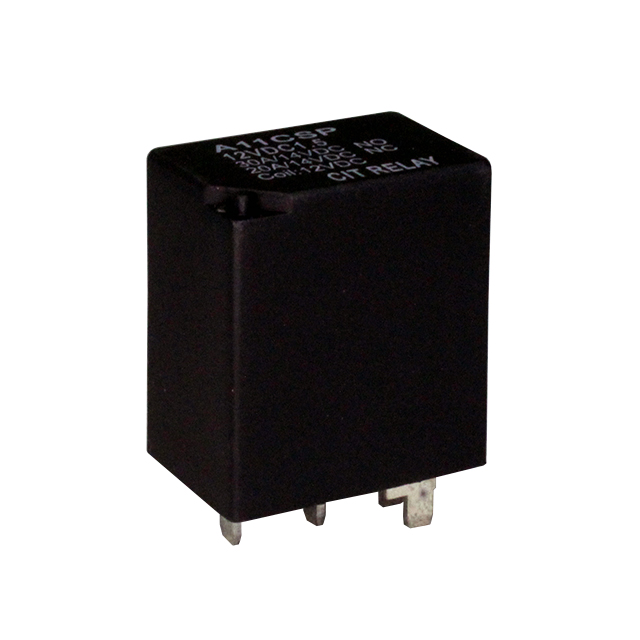

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.5 W | 96 Ohms | 125 mA | Sealed - Fully | SPDT (1 Form C) | 30 A | 1.2 VDC | 8.4 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 12 VDC | 10 ms | PC Pin | Through Hole |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.2 W | 120 Ohms | 0.1 A | Resistor Sealed - Fully | SPDT (1 Form C) | 30 A | 1.2 VDC | 8.4 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 12 VDC | 10 ms | PC Pin | Through Hole |

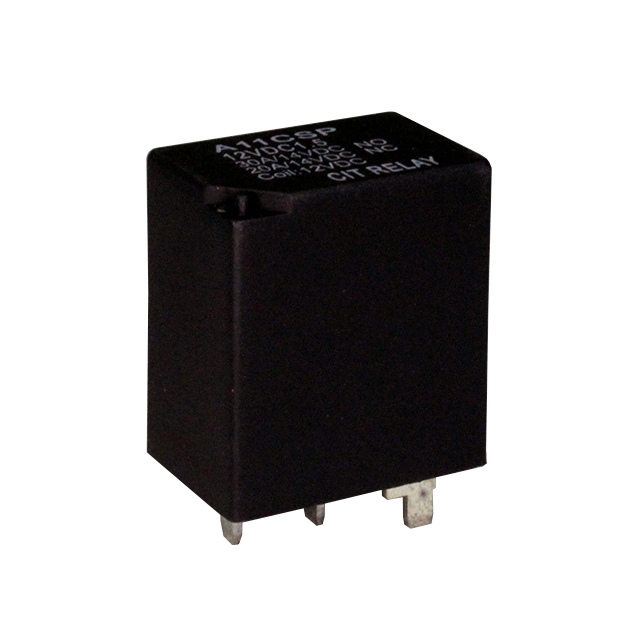

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.5 W | 96 Ohms | 125 mA | Resistor Sealed - Fully | SPDT (1 Form C) | 30 A | 1.2 VDC | 8.4 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 12 VDC | 10 ms | PC Pin | Through Hole |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.5 W | 96 Ohms | 125 mA | Diode Sealed - Fully | SPDT (1 Form C) | 30 A | 1.2 VDC | 8.4 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 12 VDC | 10 ms | PC Pin | Through Hole |

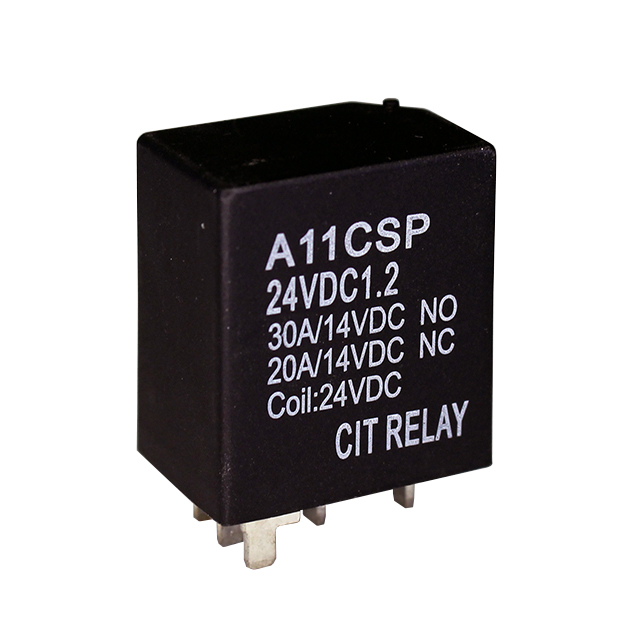

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.2 W | 480 Ohms | 50 mA | Resistor Sealed - Fully | SPDT (1 Form C) | 30 A | 2.4 VDC | 18 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 24 VDC | 10 ms | PC Pin | Through Hole |

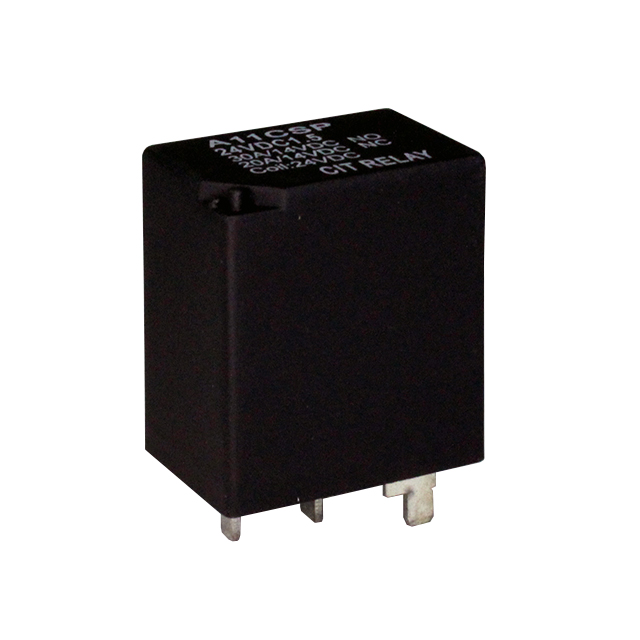

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.5 W | 384 Ohms | 62.5 mA | Sealed - Fully | SPDT (1 Form C) | 30 A | 2.4 VDC | 18 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 24 VDC | 10 ms | PC Pin | Through Hole |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.2 W | 480 Ohms | 50 mA | Diode Sealed - Fully | SPDT (1 Form C) | 30 A | 2.4 VDC | 18 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 24 VDC | 10 ms | PC Pin | Through Hole |

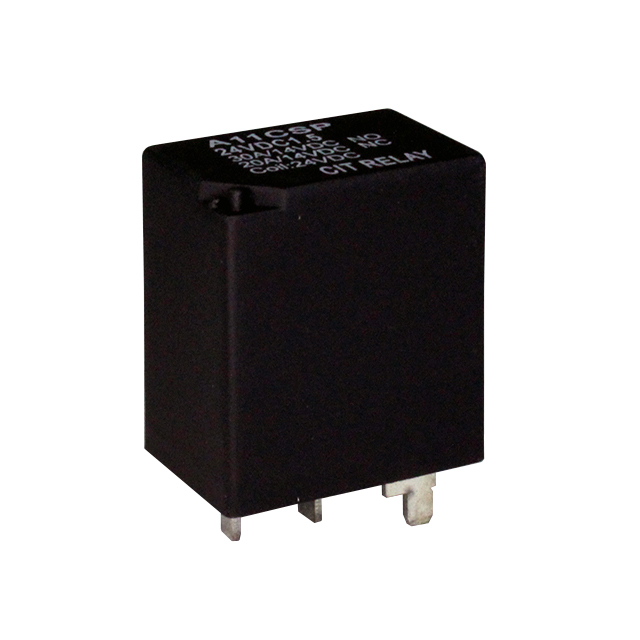

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.5 W | 384 Ohms | 62.5 mA | Resistor Sealed - Fully | SPDT (1 Form C) | 30 A | 2.4 VDC | 18 VDC | 7 ms | Non Latching | 75 VDC | 85 °C | -40 C | 24 VDC | 10 ms | PC Pin | Through Hole |
