RF2-01 Series
Manufacturer: Adam Tech
Beta
⌘K

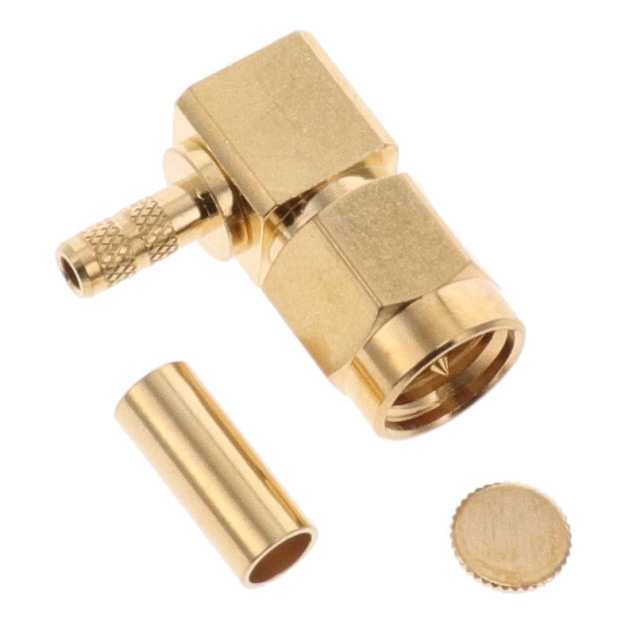

RF SMA CONNECTOR
| Part | Voltage Rating | Center Contact Plating | Dielectric Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Frequency - Max [Max] | Features | Housing Color | Cable Group | Impedance | Contact Termination | Mounting Type | Shield Termination | Number of Ports | Connector Style | Center Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | -65 ░C | 165 °C | Threaded | 6000 MHz | Code A | White | 316 LMR-100 RG-174 | 50 Ohms | Crimp | Free Hanging (In-Line) Right Angle | Crimp | 1 | SMA | Brass | Plug Male Pin |
