79214 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

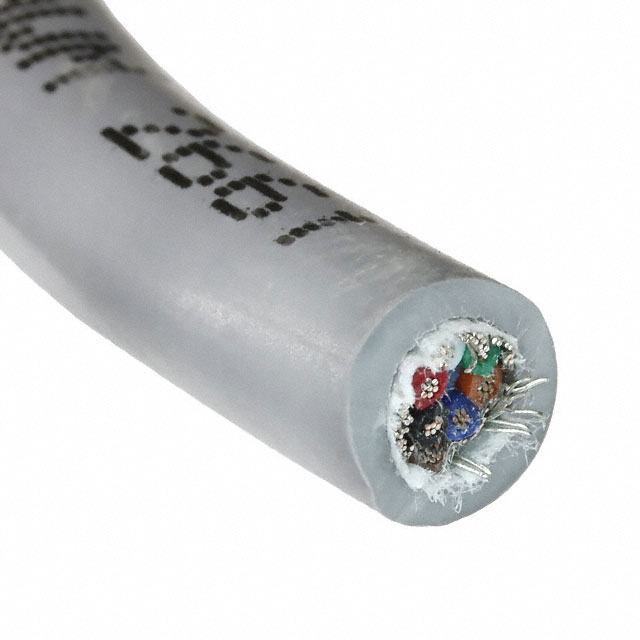

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, SHIELDED, 7 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Features | Conductor Insulation | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Type | Ratings | Jacket (Insulation) Material | Conductor Material | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Slate | 16 | 30 AWG | Multi-Conductor | -40 C | 105 ░C | 600 V | 100 ft | 30.5 m | 0.035 in | 0.889 mm | 7.9 mm | 0.311 in | 18 AWG | Braid Foil | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 7 |
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | Slate | 16 | 30 AWG | Multi-Conductor | -40 C | 105 ░C | 600 V | 0.035 in | 0.889 mm | 7.9 mm | 0.311 in | 18 AWG | Braid Foil | ISO 10993 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 7 |
