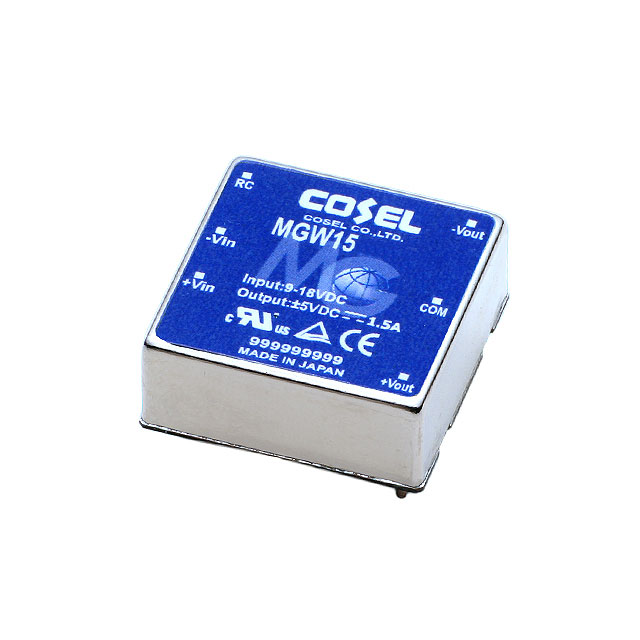

MGW152412 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-12V 24V 16W
| Part | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Number of Outputs | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Package / Case | Power (Watts) | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Output 2 | Voltage - Input (Min) [Min] | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 36 V | ITE (Commercial) | 12V 24V | 2 | 650 mA | 650 mA | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1000 V | 5-DIP Module | 16 W | 88 % | -40 °C | 85 °C | Bridgeable | -12 V | 18 V | Through Hole | Isolated Module |
Cosel USA, Inc. | 36 V | ITE (Commercial) | 12V 24V | 2 | 650 mA | 650 mA | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1000 V | 5-DIP Module | 16 W | 88 % | -40 °C | 85 °C | Bridgeable | -12 V | 18 V | Through Hole | Isolated Module |
