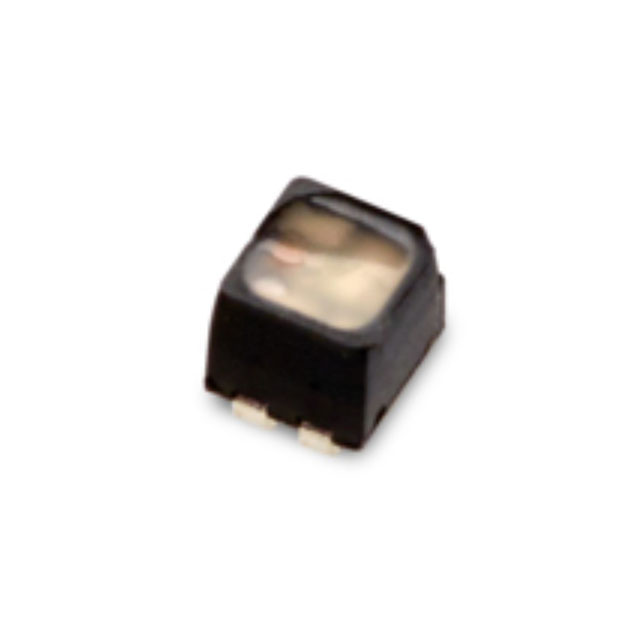

ASCB-RTCC Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED RGB 4PLCC SMD
| Part | Color | Size / Dimension [x] | Size / Dimension [y] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Package / Case | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Mounting Type | Height (Max) [Max] [z] | Supplier Device Package | Lens Style | Viewing Angle | Configuration | Lens Size | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | Blue Green Red | 1.6 mm | 1.7 mm | 10 mA | 5 mA | 10 mA | 519 nm | 629 nm | 468 nm | 4-SMD J-Lead | 440 mcd | 220 mcd | 55 mcd | Surface Mount | 1.8 mm | 4-PLCC | Irregular | 105 ° | Common Cathode | 1.29 mm | 471 nm 524 nm 621 nm | 2 V 2.7 V 2.9 V |
