R14343 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

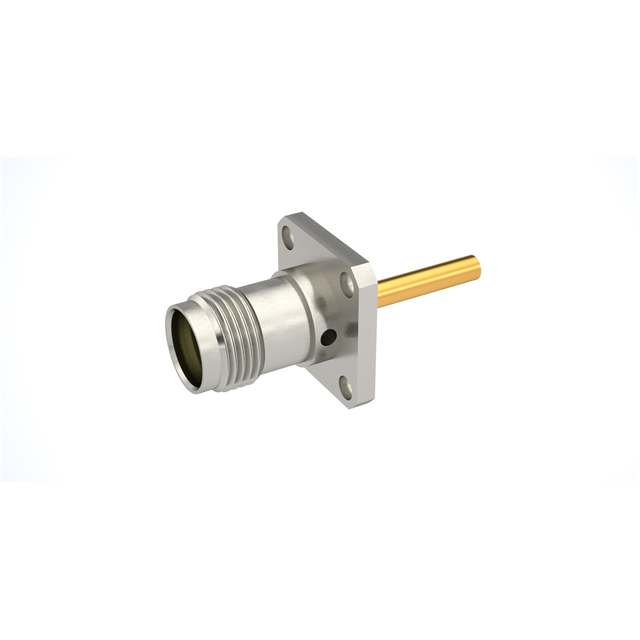

TNC / SQUARE FLANGE JACK RECEPTA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Dielectric Material | Body Finish | Body Material | Voltage Rating | Center Contact Plating | Mating Cycles | Number of Ports | Mounting Feature | Connector Style | Mounting Type | Fastening Type | Connector Type | Impedance | Shield Termination | Frequency - Max [Max] | Features | Center Contact Material | Contact Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 0.18 dB | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 500 V | Gold | 500 | 1 | Flange | TNC | Panel Mount Through Hole | Threaded | Female Socket Jack | 50 Ohms | Solder | 11 GHz | Extended Insulation | Beryllium Copper | Solder | Silver |
