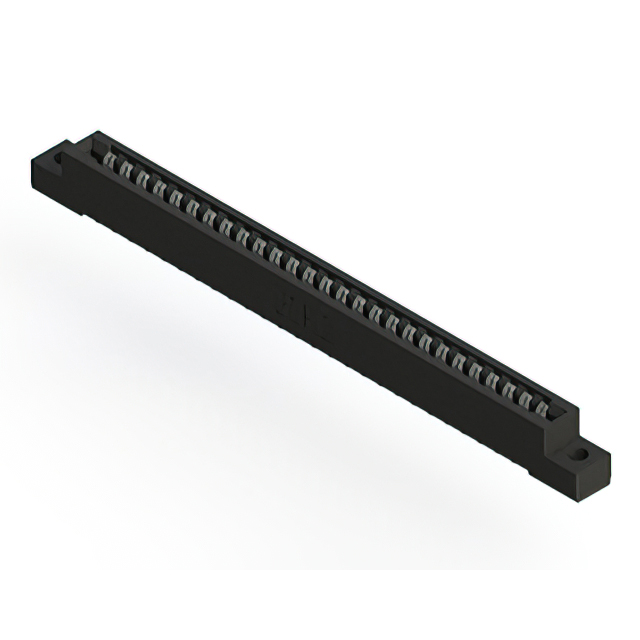

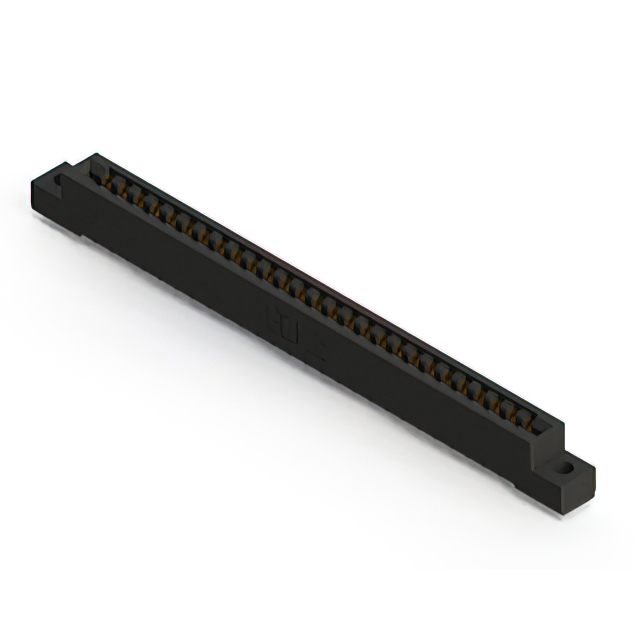

857-027 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 54POS 0.156
| Part | Number of Positions/Bay/Row | Contact Finish | Card Type | Contact Type | Termination | Color | Flange Feature | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Number of Positions | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Rows [custom] | Read Out | Pitch | Pitch | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 27 | Gold | Non Specified - Dual Edge | Semi Bellows | Wire Wrap | Black | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 54 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | 2 | Dual | 3.96 mm | 0.156 in | Female | |||
 EDAC Inc. | 27 | Gold | Non Specified - Single Edge | Semi Bellows | Solder | Black | Floating Bobbin Flush Mount | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 0.116 " | 2.95 mm | 1 | |
 EDAC Inc. | 27 | Gold | Non Specified - Single Edge | Semi Bellows | Solder | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 0.156 " | 3.96 mm | 1 | |
 EDAC Inc. | 27 | Gold | Non Specified - Dual Edge | Semi Bellows | Solder | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 54 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Right Angle Through Hole | 2 | Dual | 3.96 mm | 0.156 in | Female | 0.128 " | 3.25 mm | |
 EDAC Inc. | 27 | Tin | Non Specified - Single Edge | Semi Bellows | Solder | Black | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 1 | |||||
 EDAC Inc. | 27 | Tin | Non Specified - Dual Edge | Semi Bellows | Wire Wrap | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | Polyphenylene Sulfide (PPS) | 54 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | 2 | Dual | 3.96 mm | 0.156 in | Female | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 27 | Tin | Non Specified - Dual Edge | Semi Bellows | Solder | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | Polyphenylene Sulfide (PPS) | 54 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | 2 | Dual | 3.96 mm | 0.156 in | Female | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 27 | Tin | Non Specified - Single Edge | Semi Bellows | Solder | Black | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 1 | |||||
 EDAC Inc. | 27 | Gold | Non Specified - Single Edge | Semi Bellows | Solder | Black | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 1 | |||
 EDAC Inc. | 27 | Gold | Non Specified - Single Edge | Semi Bellows | Wire Wrap | Black | Flush Mount Top Opening Unthreaded | Copper Alloy | 0.25 Ám | 10 Áin | Polyphenylene Sulfide (PPS) | 27 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Through Hole | Single | 3.96 mm | 0.156 in | Female | 0.128 " | 3.25 mm | 1 |
